Description:

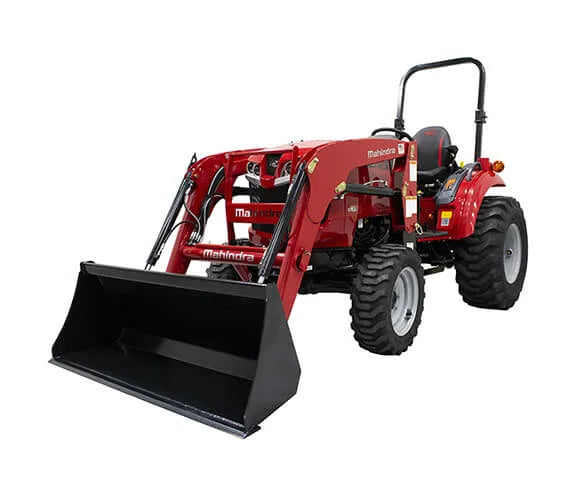

The 16404FSILM Mahindra tractor is a robust and versatile machine designed to tackle a wide range of agricultural tasks with ease. Built to deliver exceptional performance and reliability, this tractor is equipped with advanced features to enhance productivity and efficiency on the farm.

Key Features:

• Powerful Engine: The tractor is powered by a high-performance engine, providing ample horsepower to handle demanding tasks efficiently.
• Four-Wheel Drive (4WD): With 4WD capability, this tractor ensures superior traction and stability, making it suitable for various terrains and weather conditions.
• Integrated Loader: The tractor comes with an integrated loader, offering convenience and versatility for loading and carrying materials around the farm.
• Hydrostatic Transmission: Equipped with a hydrostatic transmission, the tractor offers smooth and precise control, allowing operators to easily adjust speed and direction.
• Front-End Loader: The front-end loader provides excellent lift capacity and reach, enabling users to lift and move heavy loads with ease.
• Comfortable Operator Environment: The tractor features a comfortable operator environment with ergonomic controls, adjustable seating, and a spacious cabin for enhanced comfort during long working hours.
• Versatile Attachments: Designed to accommodate a variety of attachments, the tractor can be customized to suit different applications, including mowing, tilling, plowing, and more.

Description:

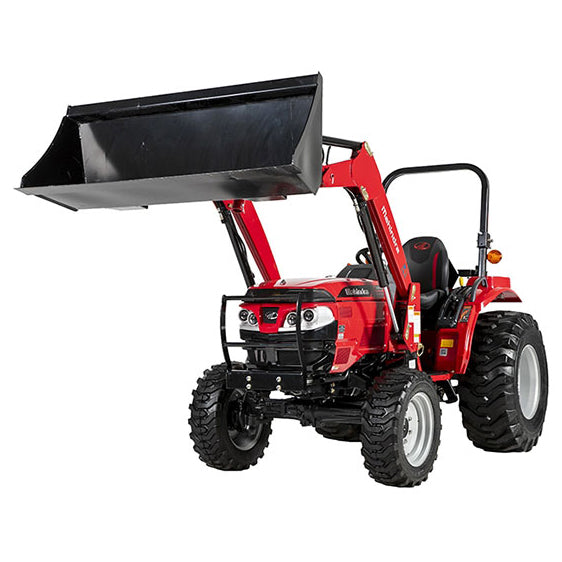

• 1640 Shuttle with loader
• Mahindra 2.7L 4-cylinder diesel engine
• Engine Horsepower: 38.7 HP
• Warranty: 2 Year Bumper to Bumper, 7 Year Powertrain
• Financing availabl

General:

• Year: 2023
• Manufacturer: MAHINDRA
• Model: 1640
• Condition: New
• Stock Number: Shuttle 4WD

Powertrain:

• Engine Horsepower: 38 HP
• Drive: MFWD (Mechanical Front Wheel Drive)

Description:

Specification:

• Manufacturer: Mahindra
• Model Year: 2023

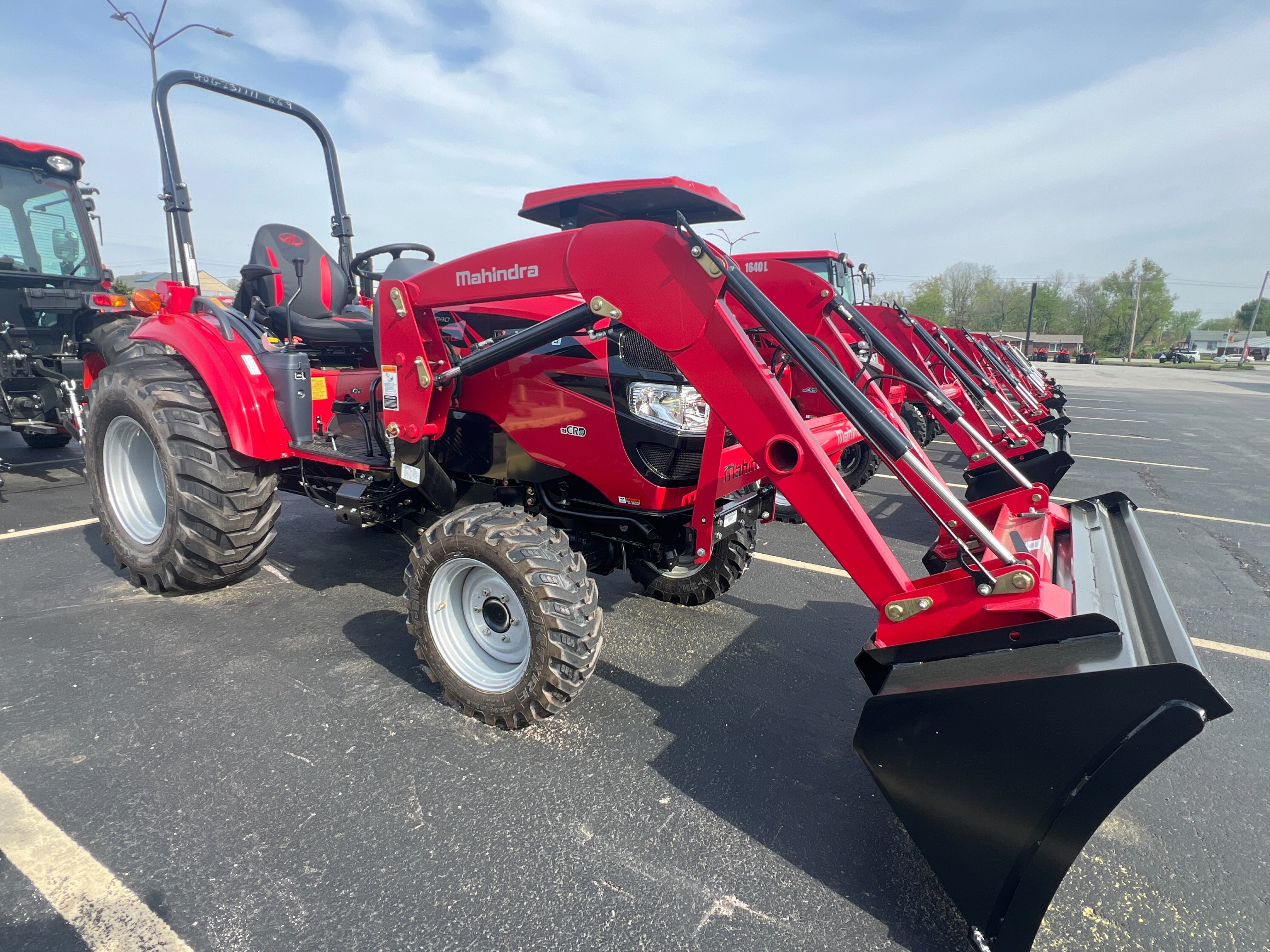

• Model: 16404FSIL
• Model Code: 16404FSIL
• Stock Number: MAH411355

Description:

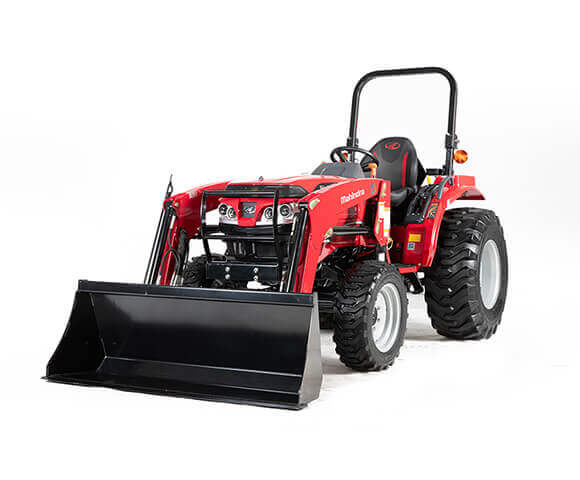

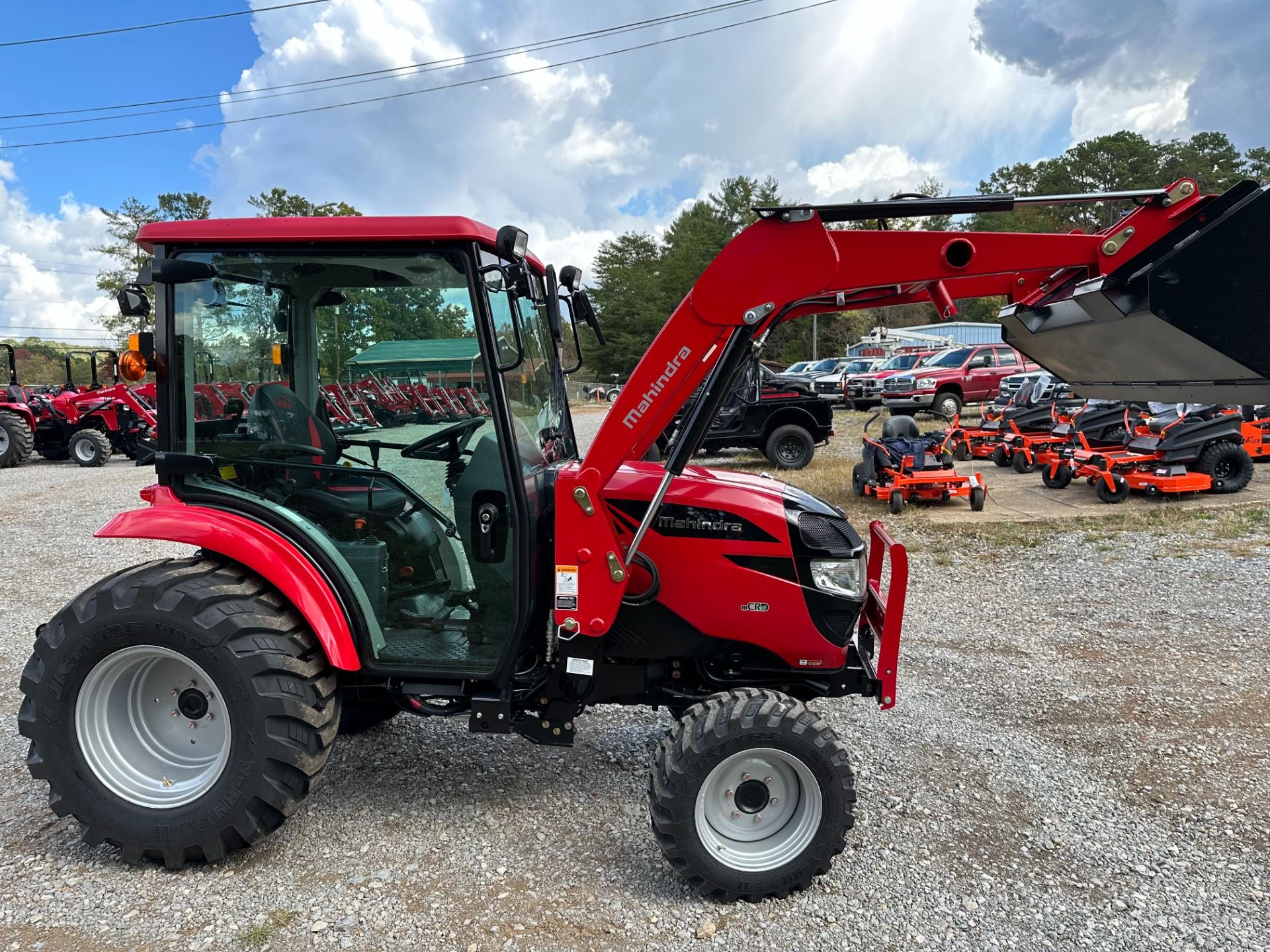

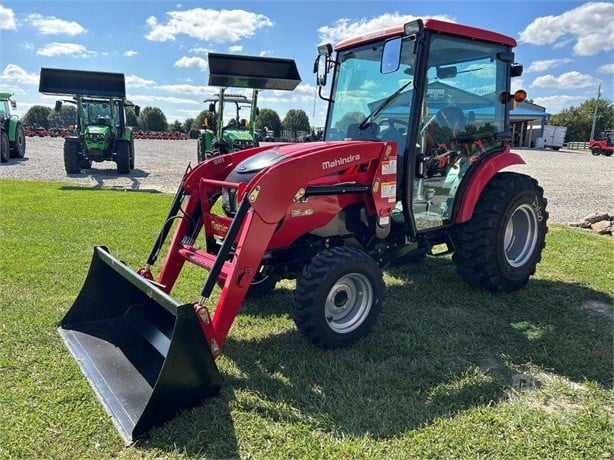

Mahindra 1640 4WD HST CAB Tractor with Loader

Features:

• 7-Year Limited Powertrain Warranty
• mCRD Clean Burning Engine / No Diesel Particulate Filter (DPF)
• Heavy Operating Weight for Better Traction, Stability, And Safety
• Highest Cold Cranking Amp Battery In Its Class
• Mahindra's mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• Low RPM Engine for Longer Life Span and Less Fuel Consumption
• Reinforced Steel Fenders and Hood
• Easy Access to Battery, Air Filter, Fuel Tank
• Optional Mid Mount PTO
• Semi-Flat Operator Platform With Floor Mat
• Large Fuel Tank
• Cup-Holder, 12V Socket, Mounted Toolbox

Specifications:

• Engine:
• Type: Four Stroke Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Horsepower: 38.7 HP @ 2400 RPM
• Displacement: 166.7 Cubic Inches
• Number of Cylinders: 4
• Fuel Tank Capacity: 7.7 Gallons
• Drive Train:
• Transmission: HST - 3 Ranges
• Number Of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc
• PTO:
• Type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Opt.) @ 2526 RPM
• PTO HP: 27.7 HP
• Hydraulics:
• Type: Open Center
• Implement Pump Output: 7.7 GPM
• Maximum Total Flow: 11.4 GPM
• 3-Point Hitch: CAT 1 with Telescoping Stabilizers & Flex Links
• Lift Capacity: 2646 lbs.
• Electrical:
• Battery: 12V, 925 CCA
• Alternator: 12V, 90A
• Dimensions:
• Overall Length: 127.8 in.
• Overall Width: 62 in.
• Overall Height: 89.4 in.
• Wheelbase: 76.9 in.
• Minimum Ground Clearance: 12.8 in.
• Turning Radius: 9.2 ft.
• Weight: 3627 lbs.
• Wheels & Tires:
• Industrial: Front 28 x 8.5-15 / Rear 43 x 16-20

1600 Series Attachments - Loader Model 1640CL:

• Standard Bucket Size: 64 in.
• Maximum Lift Height: 99 in.
• Dig Depth: 6 in.
• Lift Capacity to Full Height @ Pivot Pins: 1650 lbs.
• Breakout Force: 2650 lbs.
• Shipping Weight: 780 lbs.

Note: Advertised pricing excludes applicable taxes, title, licensing, registration, dealer prep, destination charges, freight, dealer installed options and accessories and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers.

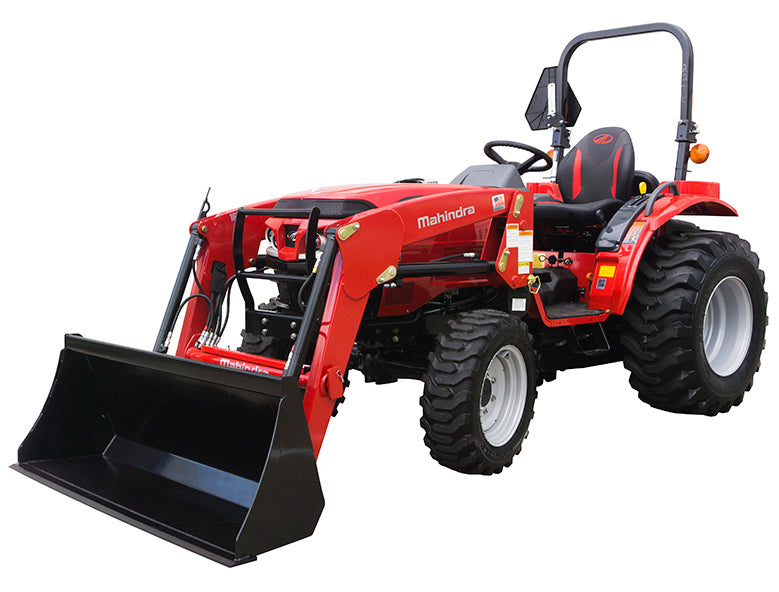

Description:

Features:

• 7 Year Limited Powertrain Warranty
• mCRD Clean Burning Engine / No Diesel Particulate Filter (DPF)
• Heavy Operating Weight for Better Traction, Stability, and Safety
• Highest Cold Cranking Amp Battery In Its Class
• mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• Low RPM Engine for Longer Life Span and Less Fuel Consumption
• Reinforced Steel Fenders and Hood
• Easy Access to Battery, Air Filter, and Fuel Tank
• Optional Mid Mount PTO
• Semi-Flat Operator Platform With Floor Mat
• Large Fuel Tank
• Cup-Holder, 12V Socket, Mounted Toolbox

Specifications:

Engine:

• Type: Four Stroke Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Horsepower: 38.7 HP @ 2400 RPM
• Displacement: 166.7 Cubic Inches
• Number of Cylinders: 4
• Fuel Tank Capacity: 7.7 Gallons

Drive Train:

• Transmission: HST - 3 Ranges
• Number Of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO:

• Type: Live
• Rear PTO RPM: 540 @2376 RPM
• Mid PTO RPM: 2000 (Opt.) @2526 RPM
• PTO HP: 27.7 HP

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.7 GPM
• Maximum Total Flow: 11.4 GPM
• 3-Point Hitch: CAT 1 WITH TELESCOPING STABILIZERS & FLEX LINKS
• Lift Capacity: 2646 LBS.

Electrical:

• Battery: 12V, 925 CCA
• Alternator: 12V, 90A

Dimensions:

• Overall Length: 127.8 IN.
• Overall Width: 62 IN.
• Overall Height: 89.4 IN.
• Wheelbase: 76.9 IN.
• Minimum Ground Clearance: 12.8 IN.
• Turning Radius: 9.2 FT.
• Weight: 3627 LBS.

Wheels & Tires:

• Industrial: Front 28 x 8.5-15 / Rear 43 x 16-20

1600 Series Attachments:

Loader Model 1640CL:

• Standard Bucket Size: 64 IN.
• Maximum Lift Height: 99 IN.
• Dig Depth: 6 IN.
• Lift Capacity to Full Height @ Pivot Pins: 1650 LBS.
• Breakout Force: 2650 LBS.
• Shipping Weight: 780 LBS.

Description:

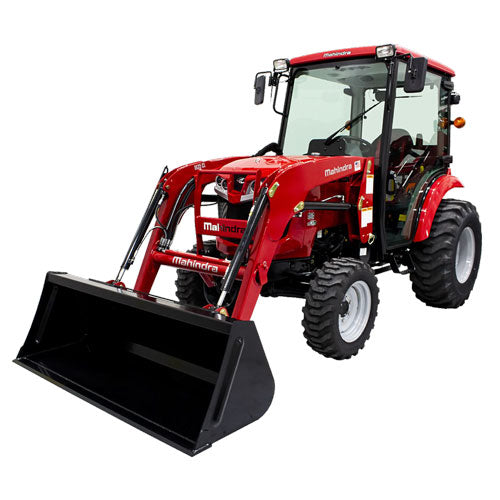

The 1600 series tractors are designed to offer the best of both worlds. With a small footprint and competitive lift capacity, these premium compact utility vehicles are optimal for light to medium application labor.

Model:

• Series: 1600

Features:

• Drive: Four Wheel Drive
• Transmission: Hydrostatic
• Tires: Industrial
• Cab: Enclosed
• Loader: Included

Key Features:

• Reinforced steel fenders & hood
• Easy access to battery, air filter, and fuel tank
• Powerful steering with tight turning radius
• Optional canopies available on open station models
• Comfort seat with foldable armrests

Specifications:

Engine / Motor:

• Type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Power: 38.7 HP (28.9 kW) @ 2400 RPM
• Displacement: 166.7 in³ (2732 cc)
• Fuel Tank Capacity: 7.7 gal.

Drive Train:

• Transmission: HST (Hydrostatic) - 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO:

• Type: Live
• Rear PTO RPM: 540 @ 2376
• Mid PTO RPM: 2000 (Optional) @ 2526
• PTO Power: 27.7 HP (20.6 kW)

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.7 gpm
• Maximum Total Flow: 11.4 gpm
• 3-Point Hitch: CAT I with Telescoping Stabilizers & Flex Links
• Lift Capacity: 2646 lb.

Electrical:

• Battery: 12V, 925 CCA
• Alternator: 12V, 90 A

Dimensions:

• Overall Length: 127.8 inches
• Overall Width: 62 inches
• Overall Height: 89.4 inches
• Wheelbase: 76.9 inches
• Minimum Ground Clearance: 12.8 inches
• Turning Radius: 9.2 feet
• Weight: 3627 lbs

Wheels & Tires:

• Front Tires (Industrial): 28" x 8.5-15"
• Rear Tires (Industrial): 43" x 16-20"

Loader:

• Standard Bucket Size: 64 inches
• Maximum Lift Height: 99 inches
• Dig Depth: 6 inches
• Lift Capacity to Full Height at Pivot Pin: 1650 lbs
• Breakout Force: 2650 lbs
• Shipping Weight: 780 lbs

Description:

A high-performance premium 4 WD compact tractor designed for light to medium applications, this is a great go to for operations that need a large lift capacity but a smaller footprint. With 36.2 engine horsepower, you can get the power you need to get your work done by easily pairing heavy-duty loaders and backhoes, with a variety of other attachments for unrivaled versatility.

Features may include:

• No DPF: No Diesel Particulate Filter
• No regeneration required
• No operator involvement or training
• Eliminates lost time & maintenance

Comfort Seat™:

• Extra cushion
• Integrated armrests
• Retractable seatbelt
• Ultimate operator comfort

Lift More at the Rear:

• Highest 3-point lift capacity in its class
• Do more with your implements

Lift More at the Front:

• Highest loader lift capacity in its class
• Skid steer style quick attach loader bucket is standard
• Get more moved
• Save more time

7-year limited powertrain warranty:

• 7 year/3000 hour Limited Powertrain Warranty
• No deductible
• Ultimate peace of mind

Description:

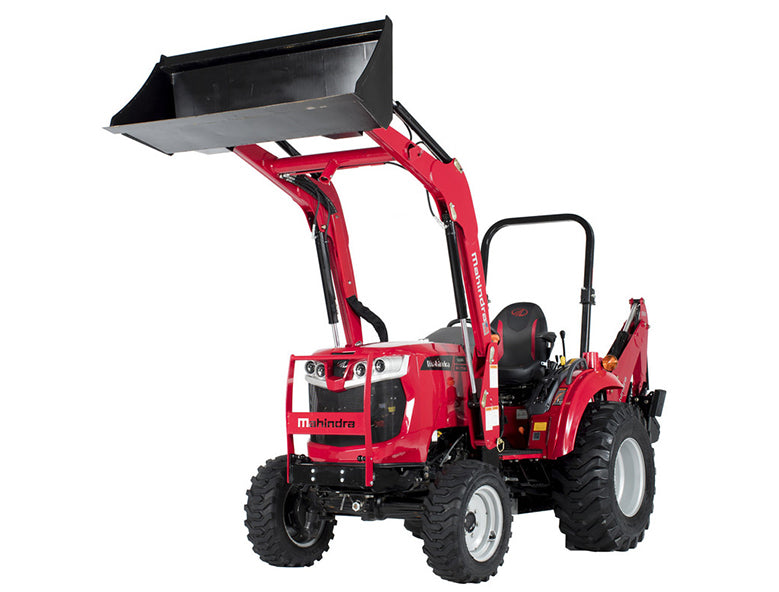

The 1600 series tractor from Mahindra offers a blend of power, versatility, and comfort, making it ideal for light to medium-duty tasks in various settings, including specialty, rural, home, grounds maintenance, and municipal applications. Here's an overview of its features and specifications:

Overview:

• Four Wheel Drive
• Foldable ROPS (Roll-Over Protective Structure)
• Hydrostatic Transmission
• Industrial Tires
• Loader
• Backhoe

Key Features:

• Reinforced steel fenders & hood
• Easy access to battery, air filter, fuel tank
• Powerful steering with a tight turning radius
• Optional canopies available on open station models
• Comfort seat with foldable armrests

Engine / Motor:

• Type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Engine Power: 36.2 HP (27 kW) @ 2500 RPM
• Displacement: 125 cu. in. (2048 cc)
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.7 gal.

Drive Train:

• Transmission: HST (Hydrostatic Transmission) with 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO (Power Take-Off):

• Type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Optional) @ 2526 RPM
• PTO Horsepower: 26 HP (19.4 kW)

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.5 gpm
• Maximum Total Flow: 10.8 gpm
• 3-Point Hitch: CAT I with telescoping stabilizers
• Lift Capacity: 2646 lb.

Electrical:

• Battery: 12V, 925 CCA
• Alternator: 12V, 90 A

Dimensions:

• Overall Length: 123.8"
• Overall Width: 63"
• Overall Height: 90.2"
• Wheelbase: 73"
• Minimum Ground Clearance: 12.2"
• Turning Radius: 8.5'
• Weight: 3075 lb.

Wheels & Tires:

• Industrial Front: 28" x 8.5-15"
• Industrial Rear: 43" x 16-20"

Loader:

• Standard Bucket Size: 62"
• Maximum Lift Height: 87"
• Dig Depth: 4.25"
• Lift Capacity to Full Height at Pivot Pin: 1650 lb.
• Breakout Force: 2690 lb.
• Shipping Weight: 780 lb.

Backhoe:

• Standard Bucket Size: 16"
• Maximum Lift Height: 86"
• Dig Depth 2' Flat Bottom: 84"
• Dig Force Bucket: 2440 lb.
• Dig Force Dipper: 1510 lb.
• Shipping Weight: 840 lb.

With its robust build, powerful performance, and array of attachments, the Mahindra 1600 series tractor is well-suited for a wide range of tasks across different environments.

Description:

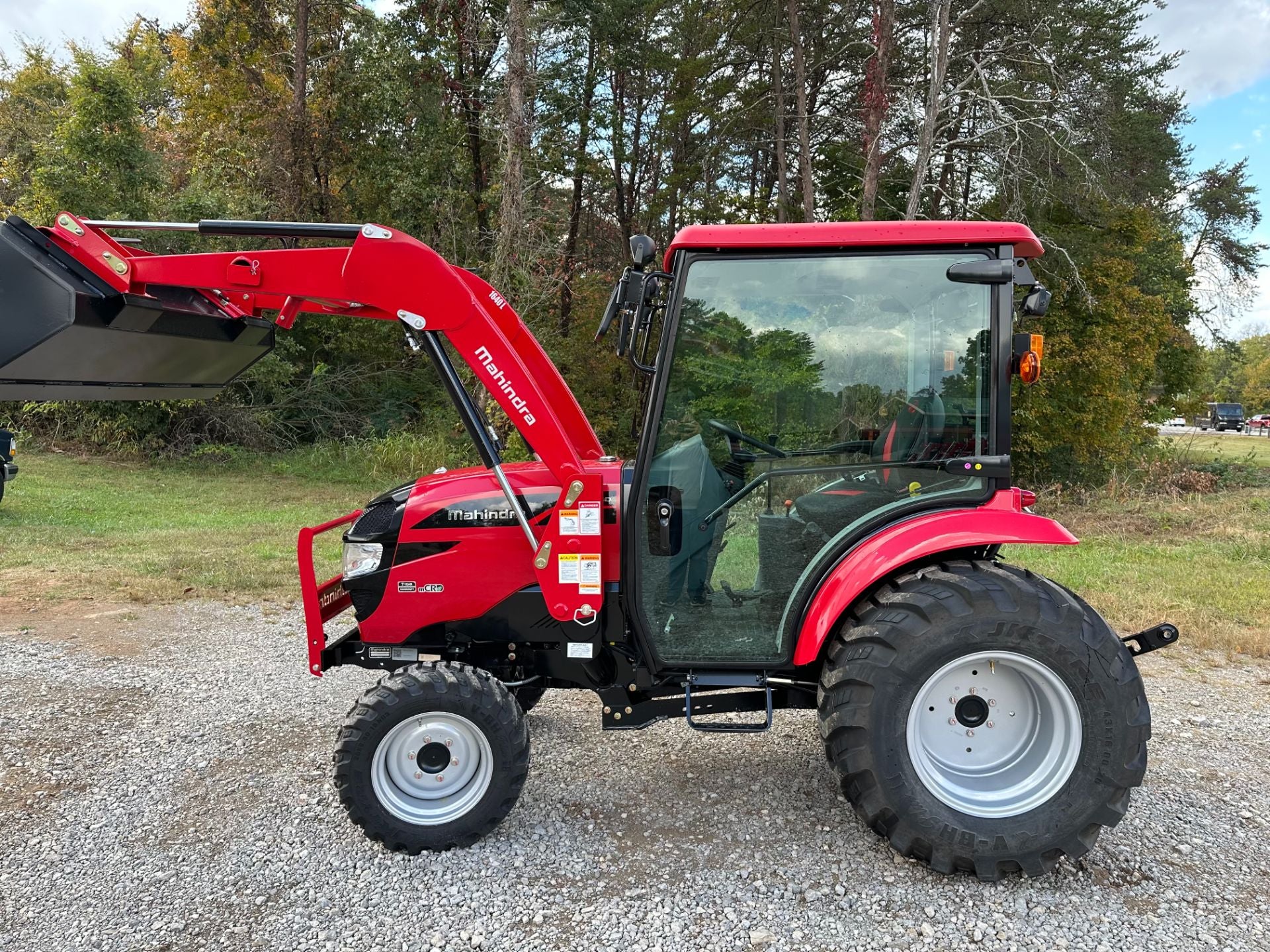

The Mahindra 1635 HST Cab tractor combines performance, comfort, and versatility to meet the demands of light to medium agricultural tasks. Here's a breakdown of its specifications:

Engine:

• Type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Horsepower: 36.2 HP (27 kW) @ 2500 RPM
• Displacement: 125 cu. in. (2048 cc)
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.7 gal. (29 L)

Drive Train:

• Transmission: HST (Hydrostatic Transmission) with 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO (Power Take-Off):

• Type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Optional) @ 2526 RPM
• PTO Horsepower: 26 HP (19.4 kW)

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.5 gpm (28.5 L/min)
• Maximum Total Flow: 10.8 gpm (40.7 L/min)
• 3-Point Hitch: CAT I with Telescoping Stabilizers & Flex Links
• Lift Capacity: 2646 lb (1200 kg)

Electrical:

• Battery: 12 V, 925 CCA
• Alternator: 12 V, 90 A

Dimensions:

• Overall Length: 123.8 in (3144 mm)
• Overall Width: 63 in (1600 mm)
• Overall Height: 88 in (2235 mm)
• Wheelbase: 73 in (1854 mm)
• Minimum Ground Clearance: 12.2 in (310 mm)
• Turning Radius: 8.5 ft (2.6 m)
• Weight: 3527 lb (1600 kg)

Wheels & Tires:

• AG (Agricultural) Front: 7 x 16
• AG Rear: 11.2 x 24
• IND (Industrial) Front: 28 x 8.5-15
• IND Rear: 43 x 16-20
• TURF (Turf) Front: 25 x 8.5-14
• TURF Rear: 13.6 x 16

This model offers a comfortable cab for operators, making it suitable for long hours of work. With its compact size, impressive lift capacity, and advanced features, the Mahindra 1635 HST Cab tractor provides exceptional value for agricultural operations.

Description:

Specification:

Engine

• Horsepower: 36.2 HP

Transmission

• Type: Shuttle & HST

Capacity

• 3-Point Hitch Lift Capacity: 2,646 lbs
• Loader Lift Capacity: 1,850 lbs

Description:

•  7 YEAR LIMITED POWERTRAIN WARRANTY *
• * mCRD Clean Burning Engine / No Diesel Particulate Filter
• * Heavy Operating Weight Means Better Traction, Stability, And Safety
• * Highest Cold Cranking Amp Battery In Its Class
• * Mahindra's mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• * Low RPM Engine Offers a Longer Life Span and Less Fuel Consumption
• * Reinforced Steel Fenders and Hood
• * Easy Access to Battery, Air Filter, Fuel Tank
• * Optional Mid Mount PTO
• * Semi-Flat Operator Platform With Floor Mat
• * Large Fuel Tank
• * Cup-Holder, 12V Socket, Mounted Toolbox
•


1635 HST SPECIFICATIONS:

• ENGINE:
• Type: FOUR STROKE NATURALLY ASPIRATED, DIRECT INJECTION, WATER COOLED DIESEL ENGINE
• Horsepower: 36.2 HP @ 2500 RPM
• Displacement: 125 CUBIC INCHES
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.7 GALLONS
• DRIVE TRAIN:
• Transmission: HST - 3 RANGES
• Number Of Speeds: INFINITE
• Clutch: DRY-SINGLE
• Brakes: WET DISC
• PTO:
• Type: LIVE
• Rear PTO RPM: 540 @2376 RPM
• Mid PTO RPM: 2000 (Opt.) @2526 RPM
• PTO HP: 26 HP
• HYDRAULICS:
• Type: OPEN CENTER
• Implement Pump Output: 7.5 GPM
• Maximum Total Flow: 10.8 GPM
• 3 - Point Hitch: CAT 1 WITH TELESCOPING STABILIZERS & FLEX LINKS
• Lift Capacity: 2646 LBS.
• ELECTRICAL:
• Battery: 12V, 925 CCA
• Alternator: 12V, 90A
• DIMENSIONS:
• Overall Length: 123.8 IN.
• Overall Width: 63 IN.
• Overall Height: 90.2 IN.
• Wheelbase: 73 IN.
• Minimum Ground Clearance: 12.2 IN.
• Turning Radius: 8.5 FT.
• Weight: 3075 LBS.
• WHEELS & TIRES:
• INDUSTRIAL: FRONT 27 x 8.5-15 / REAR 15 x 19.5
• 1600 SERIES ATTACHMENTS:
• LOADER MODEL 1635L:
• Standard Bucket Size: 62 IN.
• Maximum Lift Height: 87 IN.
• Dig Depth: 4.25 IN.
• Lift Capacity to Full Height @ Pivot Pins: 1650 LBS.
• Breakout Force: 2650 LBS.
• Shipping Weight: 780 LBS.

Description:

The Mahindra 16264FSILM tractor is a heavy-duty agricultural machine designed to tackle a variety of farming tasks with efficiency and reliability. Here's a detailed description of its features:

1. Powerful Engine: The tractor is equipped with a robust and high-performance engine, providing ample power and torque to handle demanding agricultural operations such as plowing, tilling, hauling, and mowing. The engine is designed for fuel efficiency and low emissions, meeting modern environmental standards.
2. Transmission Options: The "16264FSILM" designation suggests that it comes with a specific transmission system. While the exact details may vary, it likely includes multiple speed options or gear ranges to suit different tasks and terrain conditions, providing the operator with flexibility and control.
3. Heavy-Duty Construction: Built to withstand rugged working conditions, the Mahindra 16264FSILM features a sturdy and durable construction. This ensures longevity and reliability, allowing the tractor to perform consistently in challenging environments.
4. Hydraulic System: It likely comes equipped with a hydraulic system to power implements and attachments, such as loaders, backhoes, and mowers. The hydraulic system provides precise control over lifting and lowering functions, enhancing efficiency and productivity.
5. Comfortable Operator Environment: The tractor may feature a comfortable operator's station with ergonomic controls, adjustable seating, and modern amenities to reduce operator fatigue during long hours of operation. A well-designed cabin provides a pleasant working environment, increasing productivity and safety.
6. Versatility: Designed for versatility, the Mahindra 16264FSILM tractor is compatible with a wide range of implements and attachments, allowing it to perform various tasks across the farm. Whether it's plowing fields, planting crops, or maintaining pastures, this tractor offers the flexibility needed to get the job done efficiently.
7. Advanced Features (Optional): Depending on the model and configuration, the tractor may offer optional advanced features such as GPS guidance systems, precision farming technology, and electronic instrumentation. These features can improve accuracy, efficiency, and yield while reducing input costs.
8. Service and Support: Mahindra is known for its extensive service and support network, providing owners with access to genuine parts, maintenance services, and technical assistance. This ensures peace of mind and maximizes uptime for the tractor.

In summary, the Mahindra 16264FSILM tractor combines power, durability, versatility, and operator comfort to meet the diverse needs of modern agriculture, making it a reliable choice for farmers and agricultural professionals.

Description:

Features:

• 7-Year Limited Powertrain Warranty
• mCRD Clean Burning Engine / No Diesel Particulate Filter (DPF)
• Heavy Operating Weight for Better Traction, Stability, and Safety
• Highest Cold Cranking Amp Battery in Its Class
• mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• Low RPM Engine for Longer Lifespan and Reduced Fuel Consumption
• Reinforced Steel Fenders and Hood
• Easy Access to Battery, Air Filter, and Fuel Tank
• Optional Mid Mount PTO
• Semi-Flat Operator Platform with Floor Mat
• Large Fuel Tank
• Cup Holder, 12V Socket, Mounted Toolbox

Specifications:

Engine:

• Type: Four-Stroke Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
• Horsepower: 25.9 HP @ 2500 RPM
• Displacement: 80.4 Cubic Inches
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.1 Gallons

Drive Train:

• Transmission: Shuttle - Constant Mesh on Gearshift and Synchromesh on F-R Shuttle
• Number of Speeds: 8 Forward / 8 Reverse
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO (Power Take-Off):

• Type: Independent
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM (Optional): 2000 @ 2526 RPM
• PTO HP: 21.5 HP

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.5 GPM
• Maximum Total Flow: 10.8 GPM
• 3-Point Hitch: CAT 1 with Telescoping Stabilizers
• Lift Capacity: 2646 lbs

Electrical:

• Battery: 12V, 540 CCA
• Alternator: 12V, 50A

Dimensions:

• Overall Length: 121.3 inches
• Overall Width: 63 inches
• Overall Height: 81.5 inches
• Wheelbase: 67.3 inches
• Minimum Ground Clearance: 11.4 inches
• Turning Radius: 7.9 feet
• Weight: 2437 lbs

Wheels & Tires:

• Industrial Tires: Front 27 x 8.5-15 / Rear 15 x 19.5

Loader Model 1626L:

• Standard Bucket Size: 62 inches
• Maximum Lift Height: 86 inches
• Dig Depth: 4.5 inches
• Lift Capacity to Full Height @ Pivot Pins: 1560 lbs
• Breakout Force: 2795 lbs
• Shipping Weight: 774 lbs

With its robust features and attachments, the Mahindra 1626 4WD Shuttle Tractor with Loader offers reliability and versatility for various agricultural tasks.

Description:

Features:

• * 7 YEAR LIMITED POWERTRAIN WARRANTY *
• * mCRD Clean Burning Engine / No Diesel Particulate Filter (DPF)
• * Heavy Operating Weight Means Better Traction, Stability, And Safety
• * Highest Cold Cranking Amp Battery In Its Class
• * Mahindra's mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• * Low RPM Engine Offers a Longer Life Span and Less Fuel Consumption
• * Reinforced Steel Fenders and Hood
• * Easy Access to Battery, Air Filter, Fuel Tank
• * Optional Mid Mount PTO
• * Semi-Flat Operator Platform With Floor Mat
• Large Fuel Tank
• * Cup-Holder, 12V Socket, Mounted Toolbox

Specification:

• Horsepower: 25.9 HP
• Transmission: Shuttle & HST (Hydrostatic Transmission)
• 3-Point Hitch Lift Capacity: 2646 lbs
• Loader Lift Capacity: 1560 lbs

Description:

Features:

• 7-Year Limited Powertrain Warranty
• mCRD Clean Burning Engine / No Diesel Particulate Filter (DPF)
• Heavy Operating Weight for Better Traction, Stability, And Safety
• Highest Cold Cranking Amp Battery In Its Class
• Mahindra's mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• Low RPM Engine for Longer Life Span and Less Fuel Consumption
• Reinforced Steel Fenders and Hood
• Easy Access to Battery, Air Filter, Fuel Tank
• Optional Mid Mount PTO
• Semi-Flat Operator Platform With Floor Mat
• Large Fuel Tank
• Cup-Holder, 12V Socket, Mounted Toolbox

Specifications:

• Engine:
• Type: Four Stroke Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
• Horsepower: 25.9 HP @ 2500 RPM
• Displacement: 80.4 Cubic Inches
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.1 Gallons
• Drive Train:
• Transmission: Shuttle - Constant Mesh on Gearshift and Synchromesh on F-R Shuttle
• Number of Speeds: 8 Forward / 8 Reverse
• Clutch: Dry-Single
• Brakes: Wet Disc
• PTO:
• Type: Independent
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Opt.) @ 2526 RPM
• PTO HP: 21.5 HP
• Hydraulics:
• Type: Open Center
• Implement Pump Output: 7.5 GPM
• Maximum Total Flow: 10.8 GPM
• 3-Point Hitch: CAT 1 with Telescoping Stabilizers
• Lift Capacity: 2646 lbs.
• Electrical:
• Battery: 12V, 540 CCA
• Alternator: 12V, 50A
• Dimensions:
• Overall Length: 121.3 in.
• Overall Width: 63 in.
• Overall Height: 81.5 in.
• Wheelbase: 67.3 in.
• Minimum Ground Clearance: 11.4 in.
• Turning Radius: 7.9 ft.
• Weight: 2437 lbs.
• Wheels & Tires:
• Industrial: Front 27 x 8.5-15 / Rear 15 x 19.5

1600 Series Attachments - Loader Model 1626L:

• Standard Bucket Size: 62 in.
• Maximum Lift Height: 86 in.
• Dig Depth: 4.5 in.
• Lift Capacity to Full Height @ Pivot Pins: 1560 lbs.
• Breakout Force: 2795 lbs.
• Shipping Weight: 774 lbs.

Note: Advertised pricing excludes applicable taxes, title, licensing, registration, dealer prep, destination charges, freight, dealer installed options and accessories and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers.

Description:

A high-performance premium 4WD, compact tractor designed for light to medium applications, this is a great go-to for operations that need a large lift capacity but a smaller footprint. With 21.5 PTO horsepower, you can get the power you need to get your work done by easily pairing heavy-duty loaders and backhoes, mid-mount mowers, and a variety of other attachments for unrivaled versatility.

Features may include:

• Comfort Seat (TM)
• Extra cushion
• Integrated armrests
• Retractable seatbelt
• Ultimate operator comfort
• Lift More at the Rear
• Highest 3-point lift capacity in its class
• Do more with your implements
• Lift More in the Front
• Highest loader lift capacity in its class
• Skid steer style quick attach loader Bucket is standard
• Get more moved
• Save more time
• More Battery Power
• Highest cold cranking amps in its class
• Easy starting in unfavorable conditions
• Operator Convenience
• Cup-holder
• Easily accessible 12V Socket
• Mounted tool-box comes standard
• Extendable Flex Links
• Standard extendable flex links to adjust the 3 point and easily mount any implement

Specification:

• Horsepower: 25.9 HP
• Transmission: Shuttle & HST
• 3-Point Hitch Lift Capacity: 2646 lbs
• Loader Lift Capacity: 1560 lbs
