Description:

•  7 YEAR LIMITED POWERTRAIN WARRANTY *
• * mCRD Clean Burning Engine / No Diesel Particulate Filter
• * Heavy Operating Weight Means Better Traction, Stability, And Safety
• * Highest Cold Cranking Amp Battery In Its Class
• * Mahindra's mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• * Low RPM Engine Offers a Longer Life Span and Less Fuel Consumption
• * Reinforced Steel Fenders and Hood
• * Easy Access to Battery, Air Filter, Fuel Tank
• * Optional Mid Mount PTO
• * Semi-Flat Operator Platform With Floor Mat
• * Large Fuel Tank
• * Cup-Holder, 12V Socket, Mounted Toolbox
•


1635 HST SPECIFICATIONS:

• ENGINE:
• Type: FOUR STROKE NATURALLY ASPIRATED, DIRECT INJECTION, WATER COOLED DIESEL ENGINE
• Horsepower: 36.2 HP @ 2500 RPM
• Displacement: 125 CUBIC INCHES
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.7 GALLONS
• DRIVE TRAIN:
• Transmission: HST - 3 RANGES
• Number Of Speeds: INFINITE
• Clutch: DRY-SINGLE
• Brakes: WET DISC
• PTO:
• Type: LIVE
• Rear PTO RPM: 540 @2376 RPM
• Mid PTO RPM: 2000 (Opt.) @2526 RPM
• PTO HP: 26 HP
• HYDRAULICS:
• Type: OPEN CENTER
• Implement Pump Output: 7.5 GPM
• Maximum Total Flow: 10.8 GPM
• 3 - Point Hitch: CAT 1 WITH TELESCOPING STABILIZERS & FLEX LINKS
• Lift Capacity: 2646 LBS.
• ELECTRICAL:
• Battery: 12V, 925 CCA
• Alternator: 12V, 90A
• DIMENSIONS:
• Overall Length: 123.8 IN.
• Overall Width: 63 IN.
• Overall Height: 90.2 IN.
• Wheelbase: 73 IN.
• Minimum Ground Clearance: 12.2 IN.
• Turning Radius: 8.5 FT.
• Weight: 3075 LBS.
• WHEELS & TIRES:
• INDUSTRIAL: FRONT 27 x 8.5-15 / REAR 15 x 19.5
• 1600 SERIES ATTACHMENTS:

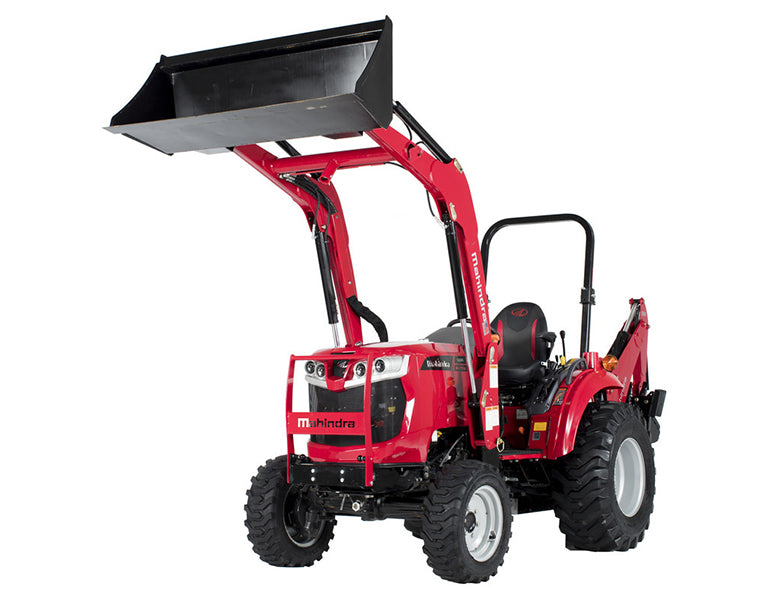

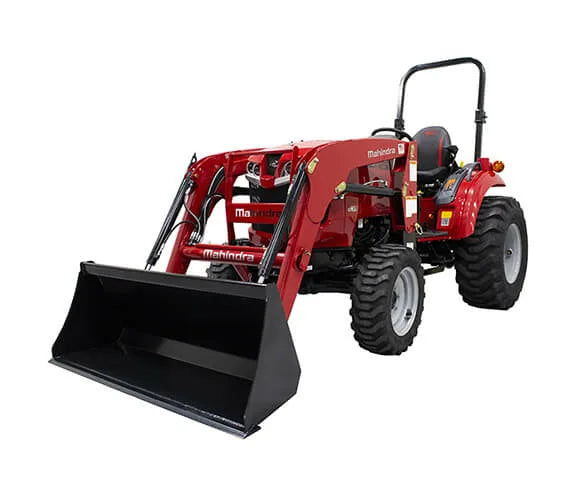

• LOADER MODEL 1635L:
• Standard Bucket Size: 62 IN.
• Maximum Lift Height: 87 IN.
• Dig Depth: 4.25 IN.
• Lift Capacity to Full Height @ Pivot Pins: 1650 LBS.
• Breakout Force: 2650 LBS.
• Shipping Weight: 780 LBS.
