Description:

Features:

• 7 Year Limited Powertrain Warranty
• mCRD Clean Burning Engine / No Diesel Particulate Filter (DPF)
• Heavy Operating Weight for Better Traction, Stability, and Safety
• Highest Cold Cranking Amp Battery In Its Class
• mCOMFORT Seat Offering Extra Cushioning & Ergonomic Support
• Low RPM Engine for Longer Life Span and Less Fuel Consumption
• Reinforced Steel Fenders and Hood
• Easy Access to Battery, Air Filter, and Fuel Tank
• Optional Mid Mount PTO
• Semi-Flat Operator Platform With Floor Mat
• Large Fuel Tank
• Cup-Holder, 12V Socket, Mounted Toolbox

Specifications:

Engine:

• Type: Four Stroke Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Horsepower: 38.7 HP @ 2400 RPM
• Displacement: 166.7 Cubic Inches
• Number of Cylinders: 4
• Fuel Tank Capacity: 7.7 Gallons

Drive Train:

• Transmission: HST - 3 Ranges
• Number Of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO:

• Type: Live
• Rear PTO RPM: 540 @2376 RPM
• Mid PTO RPM: 2000 (Opt.) @2526 RPM
• PTO HP: 27.7 HP

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.7 GPM
• Maximum Total Flow: 11.4 GPM
• 3-Point Hitch: CAT 1 WITH TELESCOPING STABILIZERS & FLEX LINKS
• Lift Capacity: 2646 LBS.

Electrical:

• Battery: 12V, 925 CCA
• Alternator: 12V, 90A

Dimensions:

• Overall Length: 127.8 IN.
• Overall Width: 62 IN.
• Overall Height: 89.4 IN.
• Wheelbase: 76.9 IN.
• Minimum Ground Clearance: 12.8 IN.
• Turning Radius: 9.2 FT.
• Weight: 3627 LBS.

Wheels & Tires:

• Industrial: Front 28 x 8.5-15 / Rear 43 x 16-20

1600 Series Attachments:

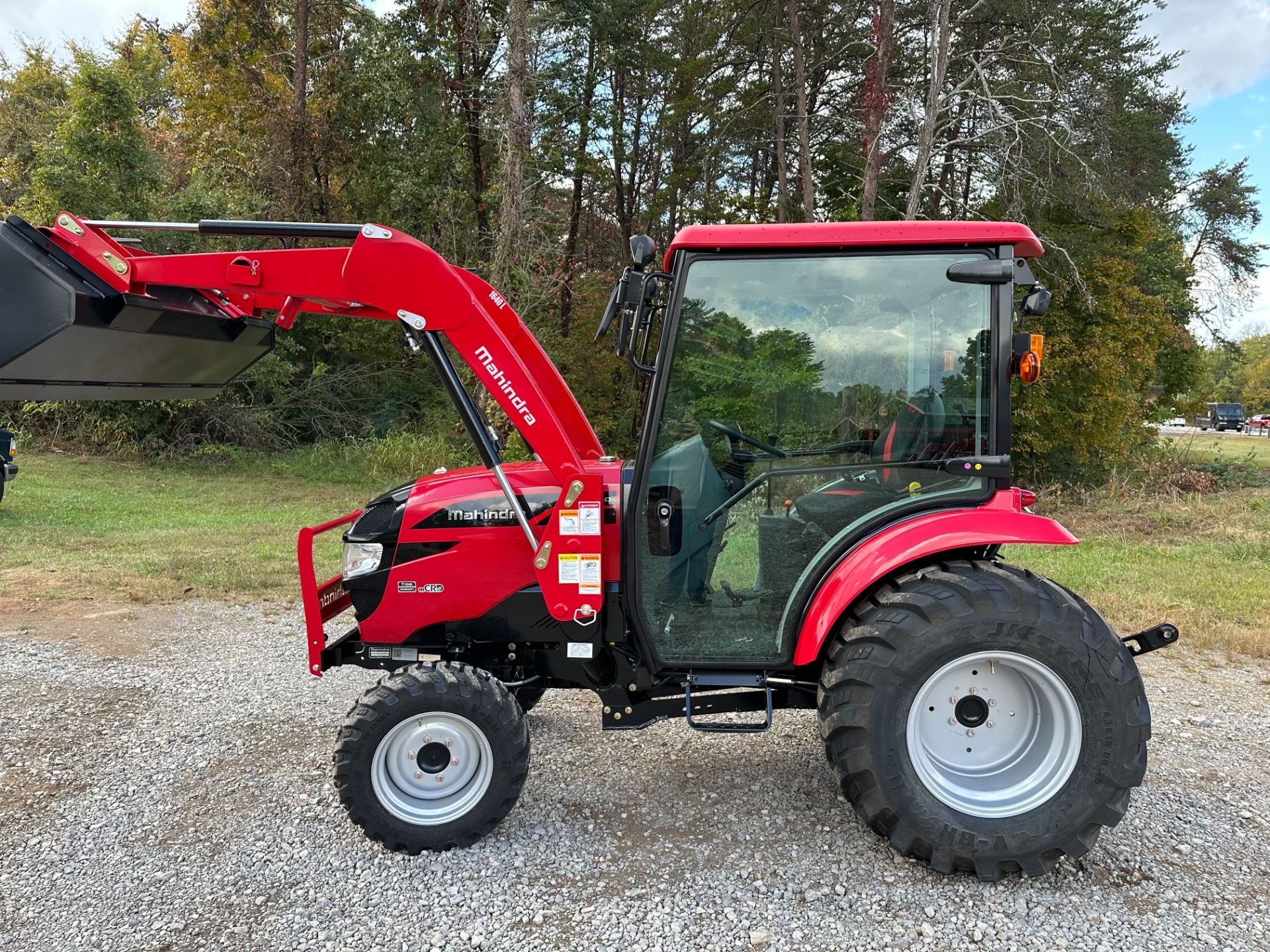

Loader Model 1640CL:

• Standard Bucket Size: 64 IN.
• Maximum Lift Height: 99 IN.
• Dig Depth: 6 IN.
• Lift Capacity to Full Height @ Pivot Pins: 1650 LBS.
• Breakout Force: 2650 LBS.
• Shipping Weight: 780 LBS.
