Description:

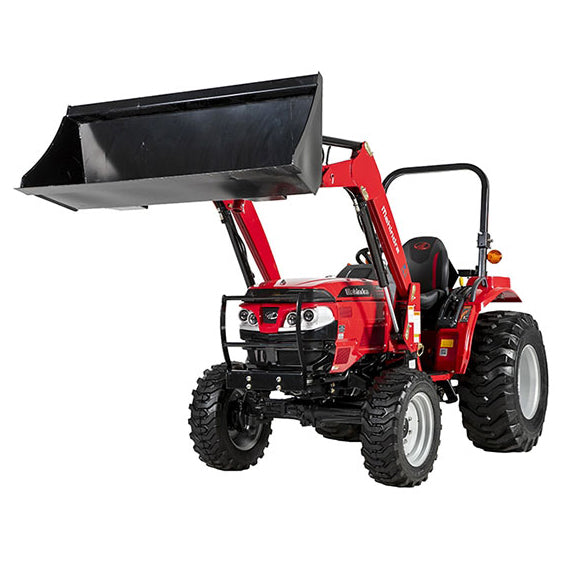

The 1600 series tractor from Mahindra offers a blend of power, versatility, and comfort, making it ideal for light to medium-duty tasks in various settings, including specialty, rural, home, grounds maintenance, and municipal applications. Here's an overview of its features and specifications:

Overview:

• Four Wheel Drive
• Foldable ROPS (Roll-Over Protective Structure)
• Hydrostatic Transmission
• Industrial Tires
• Loader
• Backhoe

Key Features:

• Reinforced steel fenders & hood
• Easy access to battery, air filter, fuel tank
• Powerful steering with a tight turning radius
• Optional canopies available on open station models
• Comfort seat with foldable armrests

Engine / Motor:

• Type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Engine Power: 36.2 HP (27 kW) @ 2500 RPM
• Displacement: 125 cu. in. (2048 cc)
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.7 gal.

Drive Train:

• Transmission: HST (Hydrostatic Transmission) with 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO (Power Take-Off):

• Type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Optional) @ 2526 RPM
• PTO Horsepower: 26 HP (19.4 kW)

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.5 gpm
• Maximum Total Flow: 10.8 gpm
• 3-Point Hitch: CAT I with telescoping stabilizers
• Lift Capacity: 2646 lb.

Electrical:

• Battery: 12V, 925 CCA
• Alternator: 12V, 90 A

Dimensions:

• Overall Length: 123.8"
• Overall Width: 63"
• Overall Height: 90.2"
• Wheelbase: 73"
• Minimum Ground Clearance: 12.2"
• Turning Radius: 8.5'
• Weight: 3075 lb.

Wheels & Tires:

• Industrial Front: 28" x 8.5-15"
• Industrial Rear: 43" x 16-20"

Loader:

• Standard Bucket Size: 62"
• Maximum Lift Height: 87"
• Dig Depth: 4.25"
• Lift Capacity to Full Height at Pivot Pin: 1650 lb.
• Breakout Force: 2690 lb.
• Shipping Weight: 780 lb.

Backhoe:

• Standard Bucket Size: 16"
• Maximum Lift Height: 86"
• Dig Depth 2' Flat Bottom: 84"
• Dig Force Bucket: 2440 lb.
• Dig Force Dipper: 1510 lb.
• Shipping Weight: 840 lb.

With its robust build, powerful performance, and array of attachments, the Mahindra 1600 series tractor is well-suited for a wide range of tasks across different environments.
