Description:

Mahindra ANBH4550B Backhoe Attachment Specifications:

• Included Components:
• Backhoe Attachment
• Mounting Brackets
• Hydraulic Feet (missing)
• Missing Parts:
• Extension Arm
• Bucket

Description:

Specifications

• Horsepower: 41 HP
• Transmission: Gear
• 3-Point Hitch Lift Capacity: 3527 lbs
• Loader Lift Capacity: 3527 lbs

Description:

Mahindra 4500 series utility tractors are rugged and hardworking designed for light and medium-duty applications. Available in 2WD or 4WD, these practical, no-nonsense machines are designed to provide you with everything you need to get the job done. Available from 41 to 48 engine horsepower, and compatible with an extensive number of high-quality implements and attachments, you can easily configure this tractor to your liking so you can make the most of your workday.

Specification:

ENGINE:

• Type: Four Stroke, Direct Injection, Water-Cooled Diesel
• Engine HP [kW] @ RPM: 48 (35.8) @ 2300
• Displacement (in³): 166.7 (2732)
• Number of Cylinders: 4
• Compression Ratio: 18.7 : 1
• Low Idle RPM: 750 ± 50
• High Idle RPM: 2500 ± 50

POWER TAKE OFF:

• Type: Live
• Rear PTO RPM: 540 @ 2058
• PTO HP [kW]: 38 (28.3)

DASH INSTRUMENTS:

• Tachometer & Hour Meter
• Fuel Gauge
• Temperature Gauge
• Indicators for Warning Messages
• 4WD Drive Lamp

SAFETY EQUIPMENT:

• Foldable ROPS w/ Retractable Seat Belt
• Safety Start Switches
• Turn Signals/ Hazard Lights
• Mechanical Wet Disc Brakes
• Electric Key Shut Off
• Parking Brake Indicator on Dash
• Water Temperature Gauge
• Horn

DRIVE TRAIN:

• Number of Speeds: 8F / 2R
• Clutch: Dual
• Brakes: Fully Enclosed Dry Disc

HYDRAULICS:

• Type: Open Center, Full-Live Hydraulic w/ Position & Draft Controls
• 3-Point Hitch: CAT I & II w/ Telescopic Stabilizer
• Lift Capacity lb (kg): 3527 (1599)

OPERATOR STATION:

• Wide Platform Steps
• Color Coded Controls
• Tool Box
• mComfort Seat w/ Adjustable Mechanical Suspension

FRONT AXLE:

• Power Steering
• Square Tube Design
• Level Gears for Wider Steering

ELECTRICAL:

• Battery: 12 V, 96 Ah
• Alternator: 12 V, 45 A
• Starter Capacity: 12 V, 2.0 kW

DIMENSIONS:

• Overall Length in (mm): 127 (3225)
• Overall Width in (mm): 82.6 (2098)
• Overall Height in (mm): 93.7 (2379)
• Wheelbase in (mm): 76.7 (1948)
• Turning Radius ft (m): 10.5 (3.2)
• Weight lb (kg): 5192 (2360)

WHEELS & TIRES:

• AG [Front/Rear]: 9.5 x 16 / 12.4 x 28
• IND [Front/Rear]: 12.6 x 16.5 / 16.9 x 24

CAPACITIES:

• Fuel Tank gal. (L): 14.5 (54.8)
• Cooling System gal. (L): 2.2 (8.3)
• Engine Oil gal. (L): 2 (7.5)
• TRANS & DIFF gal. (L): 10.5 (39.7)

Description :

Specification:

• Engine:
• Type: Four Stroke, Direct Injection, Water-Cooled Diesel
• Engine HP [kW] @ RPM: 48 (35.8) @ 2300
• Displacement (in³): 166.7 (2732)
• Number of Cylinders: 4
• Compression Ratio: 18.7 : 1
• Low Idle RPM: 750 ± 50
• High Idle RPM: 2500 ± 50
• Power Take Off (PTO):
• Type: Live
• Rear PTO RPM: 540 @ 2058
• PTO HP [kW]: 38 (28.3)
• Dash Instruments:
• Tachometer & Hour Meter
• Fuel Gauge
• Temperature Gauge
• Indicators for Warning Messages
• 4WD Drive Lamp
• Safety Equipment:
• Foldable ROPS w/ Retractable Seat Belt
• Safety Start Switches
• Turn Signals/ Hazard Lights
• Mechanical Wet Disc Brakes
• Electric Key Shut Off
• Parking Brake Indicator on Dash
• Water Temperature Gauge
• Horn
• Drive Train:
• Number of Speeds: 8F / 2R
• Clutch: Dual
• Brakes: Fully Enclosed Dry Disc
• Hydraulics:
• Type: Open Center, Full-Live Hydraulic w/ Position & Draft Controls
• 3-Point Hitch: CAT I & II w/ Telescopic Stabilizer
• Lift Capacity lb (kg): 3527 (1599)
• Operator Station:
• Wide Platform Steps
• Color Coded Controls
• Tool Box
• mComfort Seat w/ Adjustable Mechanical Suspension
• Front Axle:
• Power Steering
• Square Tube Design
• Level Gears for Wider Steering
• Electrical:
• Battery: 12 V, 96 Ah
• Alternator: 12 V, 45 A
• Starter Capacity: 12 V, 2.0 kW
• Dimensions:
• Overall Length in (mm): 127 (3225)
• Overall Width in (mm): 82.6 (2098)
• Overall Height in (mm): 93.7 (2379)
• Wheelbase in (mm): 76.7 (1948)
• Turning Radius ft (m): 10.5 (3.2)
• Weight lb (kg): 5192 (2360)
• Wheels & Tires:
• AG [Front/Rear]: 9.5 x 16 / 12.4 x 28
• IND [Front/Rear]: 12.6 x 16.5 / 16.9 x 24
• Capacities:
• Fuel Tank gal. (L): 14.5 (54.8)
• Cooling System gal. (L): 2.2 (8.3)
• Engine Oil gal. (L): 2 (7.5)
• TRANS & DIFF gal. (L): 10.5 (39.7)

DESCRIPTION:

FEATURES:

• 5 YEAR LIMITED POWERTRAIN WARRANTY
• mCRD Clean Burning Engine / No Diesel Particulate Filter (DPF)
• Best 3-Point PTO with CAT 1 & 2 Connectors / 540 and 540E Modes
• mCOMFORT Seat = Extra Cushioning & Ergonomic Support
• Remote Valve
• Steel Fenders / Hood
• Best Transmission for Loader Work: 12 Forward and 12 Reverse Gears
• Quick Connect Loader Delivers Leading Lift Height and Best-In-Class Dig Depth

SPECIFICATIONS:

ENGINE:

• Type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Horsepower: 45 HP @ 2300 RPM
• Displacement: 166.2 cubic inches
• Number of Cylinders: 4
• Fuel Tank Capacity: 17.1 gallons

DRIVE TRAIN:

• Transmission: Full Synchromesh with F/R Synchro Shuttle & Constant Mesh Range
• Number Of Speeds: 12 Forward / 12 Reverse
• Clutch: Dual Dry with Cerametallic Lining
• Brakes: Fully Enclosed 7" Diameter Dry Disc

PTO:

• Type: Independent
• Rear PTO RPM: 540 @ 2300 / 540E @ 1725 RPM
• PTO HP: 38 HP @ 2300 RPM

HYDRAULICS:

• Type: Open Center, Adjustable Lower Links with Stabilizer
• Maximum Total Flow: 8.71 GPM
• Standard Rear Valve: 1 Spool
• 3-Point Hitch: CAT I & II with Telescopic Stabilizers & Flex Links
• Lift Capacity: 3748 lbs

ELECTRICAL:

• Battery: 12V, 925 CCA
• Alternator: 12V, 55A

DIMENSIONS:

• Overall Length: 136.6 inches
• Overall Width: 74.8 inches
• Overall Height: 60.6 inches
• Weight: 5390 lbs

WHEELS & TIRES:

• Industrial:
• Front: 10.5/80 x 18
• Rear: 16.9 x 24

LOADER MODEL 5155-4L:

• Standard Bucket Size: 72 inches
• Rated Capacity: 13.42 cubic feet
• Maximum Lift Height: 122 inches
• Dig Depth Below Grade: 8.7 inches
• Lift Capacity to Full Height @ Pivot Pins: 3100 lbs
• Breakout Force: 5200 lbs
• Shipping Weight: 1600 lbs

BACKHOE MODEL 65B:

• Standard Bucket Size: 18 inches
• Maximum Dig Depth: 112 inches
• Dig Depth: 2' Flat Bottom: 110 inches
• Dig Force Bucket: 3895 lbs
• Dig Force Dipper: 2358 lbs
• Shipping Weight: 1100 lbs

NOTE: Advertised pricing excludes applicable taxes, title, licensing, registration, dealer prep, destination charges, freight, dealer installed options and accessories and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers.

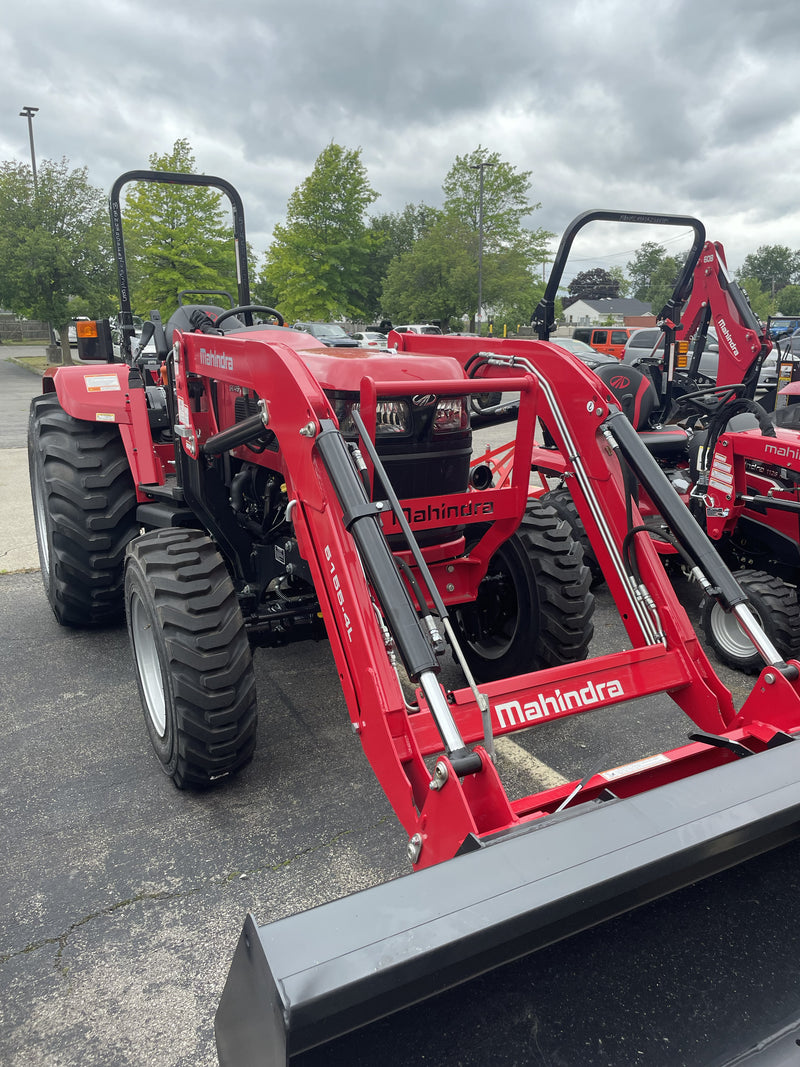

Description:

The 5145 model falls under the 5100 Utility Series, built tough for diverse agricultural and industrial use. Highlights include:

• 45 HP diesel engine with 4‑cylinder design, direct injection, and water cooling.
• Synchro Shuttle transmission offering 12 forward + 12 reverse gears for smooth loader operations.
• 4WD powertrain, ideal for traction in tough terrain.

Features:

• Ergonomic operator platform: near‑flat floor, rubber matting, adjustable suspension seat with armrests, tilt steering, and two‑step ladder access
• Strong PTO options: independent rear PTO with both 540 & 540E speeds—giving ~38 HP available
• Front loader optimized: front tow-hook, rear clevis hitch, one hydraulic remote valve (expandable), and Category I/II 3‑point hitch.

Specifications:

Engine

• Power: 45 HP @ 2,300 RPM
• Displacement: 2,723 cc
• Cylinders: 4-cylinder
• Fuel Type: Diesel
• Fuel Efficiency: Equipped with 540E PTO mode for reduced engine RPM during light-duty tasks – improves fuel savings and reduces noise

Transmission

• Type: Synchro-shuttle
• Gear Configuration: 12×12 gears
• Top Speed: ~17.9 mph (~28.8 km/h)

Hydraulics

• 3‑Point Hitch Lift Capacity: 3,748 lb @ 24″ aft
• Loader Lift Capacity: 3,245 lb
• Hydraulic Flow Rate (Total): ~13.3 GPM (main + steering)

Fuel System

• Tank Capacity: 16.7 gal (63.5 L)

Dimensions & Weight

• Operating Weight: ~5,579 lb (2,536 kg)
• Wheelbase: 77.9″ (1,979 mm)
• Overall Width: 74.8″ (1,900 mm)

Tires

• Standard (AG):
• Front: 9.5×24
• Rear: 14.9×28
• Optional: Industrial tires available

Description:

The Mahindra 5145 4WD Tractor, also known as the 51454FSIL model, is a versatile agricultural vehicle designed to handle a variety of farming tasks efficiently.

1. Powerful Engine: The tractor is equipped with a robust engine that delivers ample power for various farming operations. This ensures reliable performance even in challenging conditions.
2. 4WD Capability: With its four-wheel-drive capability, the Mahindra 5145 offers excellent traction and maneuverability. This feature is particularly useful when navigating rough terrain or working in muddy fields.
3. Comfortable Cabin: The tractor is designed with a comfortable cabin, providing the operator with a pleasant working environment. Features such as ergonomic controls and adjustable seating contribute to enhanced comfort during long hours of operation.
4. Hydraulic System: The tractor is equipped with a hydraulic system that enables the attachment of various implements and accessories. This allows for versatility in farming tasks, such as plowing, tilling, and hauling.
5. Durability: Mahindra tractors are known for their durability and rugged construction. The 5145 model is built to withstand the rigors of agricultural work, ensuring longevity and reliability for the operator.
6. Modern Features: Depending on the specific model and configuration, the Mahindra 5145 may come equipped with modern features such as power steering, air conditioning, and advanced instrumentation for improved efficiency and convenience.

Description:

The Mahindra 5155 4WD Shuttle Tractor (51554FSIL65B50M) is a powerful and versatile agricultural machine designed for a variety of tasks on the farm.

Key features include:

• Engine Power: Equipped with a robust engine providing reliable horsepower to handle demanding jobs.
• 4WD Capability: Four-wheel drive for enhanced traction and stability on various terrains.
• Shuttle Transmission: Easy forward and reverse shuttle transmission for smooth and efficient operation.
• Hydraulic System: Strong hydraulic system to support various implements and attachments.
• Ergonomic Design: Comfortable operator station with intuitive controls for reduced fatigue and increased productivity.
• Durability: Built with high-quality materials to withstand tough working conditions and ensure long-term performance.
• Versatility: Suitable for a range of applications including plowing, tilling, hauling, and more.

Description:

Mahindra’s new 6000 series of utility tractors, built to embody durability and dependability. These robust machines are meticulously crafted to deliver exceptional performance and operator comfort, even in the most challenging terrains. With the power to tackle heavy-duty tasks effortlessly, you can wrap up your workday in rocky or hilly areas without experiencing the usual operator strain.

Specifications:

• 3-Point Hitch Lift Capacity: 4840 lb (2195 kg)
• 3-Point Hitch: CAT I & II
• Tires – AG [Front/Rear]: 11.2 x 24 / 16.9 x 30
• Alternator: 12 V, 55 A [External Fan]
• Battery: 12 V, 925 CCA
• Bore & Stroke: Bore: 3.78 in, Stroke: 4.8 in
• Brakes: Oil Immersed Brakes, Disc Diameter — 8.75 in. OD (222 mm), Ball and Ramp Type
• Clutch: Power Shuttle with Torsional Damper (wet)
• Engine HP: 62 (46.2) @ 2100 RPM
• Engine Type: Four-stroke, Turbocharged, Intercooled, Direct Injection, Water Cooled Diesel Engine
• Fuel Tank: 23.8 gal (90.0 L)
• Hydraulics Type: Open Center with Position and Draft Control, Telescoping Stabilizers and Flex Links
• Implement Pump Output: 11.1 gpm (42.0 L/min)
• Tires – IND [Front/Rear]: 43 x 16-20 / 18.4-28
• Maximum Total Flow: 15.7 gpm (59.4 L/min)
• Minimum Ground Clearance: 12.2 in (309 mm)
• Number of Cylinders: 3
• Number of Speeds: 15F / 15R
• Overall Height: 104 in (2641 mm)
• Overall Length: 146.9 in (3731 mm)
• Overall Width: 73.2 in (1859.2 mm)
• PTO HP: 53.5 (39.9) kW
• PTO Type: 2-Speed Independent Single Lever PTO
• Rear PTO RPM: 540/540E
• Transmission: Full Synchro Mesh with Forward / Reverse Power Shuttle and Constant Mesh Range
• Turning Radius: 12.4 ft (3.7 m)
• Weight: 6746 lb (3059 kg)
• Wheelbase: 84.7 in (2151.3 mm)

With Mahindra’s 6000 series, durability and dependability are not just words — they're the cornerstone of your tractor's performance.

Description:

The Mahindra 60654FPAL Tractor is a sturdy and reliable machine tailored for various agricultural tasks. Powered by a robust 62 horsepower Mahindra Diesel engine, this tractor ensures consistent performance even in demanding conditions.

Its water-cooled engine and sizable 23.8-gallon fuel capacity are designed for efficiency and endurance, minimizing interruptions for refueling. The shuttle transmission facilitates smooth operation and swift direction changes, enhancing productivity in the field.

Featuring 15 forward speeds and 15 reverse speeds, operators have precise control over their speed and direction, optimizing performance for different applications. The rear-mounted 540 PTO (Power Take-Off) offers versatility for powering a range of implements, while the 3-point hitch enables easy attachment of compatible equipment.

Equipped with 11.2 X 24 front tires and 16.9 X 30 rear tires, this tractor provides stability and traction across various terrains. Additionally, it comes with a loader fitted with a bucket, enhancing its functionality for tasks like loading and transporting materials.

Description:

DURABLE AND DEPENDABLE

If there's one word to describe Mahindra's new 6000 series of utility tractors, that word is durability. These tough and reliable machines are specifically engineered for top-tier performance and operator comfort in the toughest terrains. End a productive day working in rocky or hilly areas without feeling the usual operator strain. The 6000 series has the power you need to make light work of the heaviest jobs.

Specifications:

• Year: 2024
• Manufacturer: Mahindra
• Model Name: 6000 Series
• Trim Name: 6075 4WD Cab
• Generic Type (Primary): 4WD
• Stroke: 4.8 in
• Aspiration: Turbocharged
• Cooling: Intercooled / Water Cooled
• Engine Power: 71 hp (52.9 kW) @ 2100 rpm
• Displacement: 161.7 in³ (2650 cc)
• Cylinder Liners: 4
• Bore: 3.78 in
• Fuel System: Fuel Injection - Direct
• Fuel Type: Diesel
• PTO:
• Type: 2-Speed Independent Single Lever
• PTO Power, Rated Engine Speed:
• Rear: 540/540E rpm | 61 hp (45.5 kW)
• Drivetrain:
• Number of Speeds: 15F / 15R
• Transmission: Full Synchro Mesh with Forward / Reverse Power Shuttle and Constant Mesh Range
• Clutch: Power Shuttle with Torsional Damper (wet)
• Brakes:
• Brake System Type: Oil Immersed Brakes, Disc Diameter — 8.75 in. OD (222 mm), Ball and Ramp Type
• Wheels & Tires:
• Front Specification: AG: 11.2 x 24 | IND: 43 x 16-20
• Rear Specification: AG: 16.9 x 30 | IND: 18.4-28
• Battery: 12 V, 925 CCA
• Electric:
• Alternator: 12 V, 140 A [Internal Fan]
• Hydraulics:
• Hydraulic Type: Open Center with Position and Draft Control, Telescoping Stabilizers and Flex Links
• Hydraulic Pump: Implement Output: 11.1 gpm (42.0 L /min)
• Hydraulic Flow: Maximum Total: 15.7 gpm (59.4 L/min)
• Hitch/Type: 3-Point: CAT I & II
• Dimensions:
• Overall Length: 146.9 in (3731 mm)
• Overall Width: 82.68 in (2100 mm)
• Overall Height: 115 in (2921 mm)
• Wheelbase: 87.4 in (2219 mm)
• Ground Clearance: Minimum: 14.1 in (358 mm)
• Turning Radius: 12.4 Ft (3.7 m)
• Capacities:
• Fuel Capacity: Tank: 23.8 gal (90.0 L)
• Hitch Lift Capacity: 3- Point: 4840 lb (2195 kg)
• Weights:
• Weight: 7495 lb (3399 kg)

Description:

The Mahindra standard-duty rotary cutter is perfect for small acreage. Easily mow down tall grass, thickets, and new growth saplings in paddocks, fields, woods, and footpaths. It comes with lots of options, including a slip clutch and front and rear chains, for more abusive and intrusive environments. And as a testament to its durability, it's backed by a strong warranty.

Features:

• Connection Type - Top link flexible
• Side Bands - HD 7 in. channel
• PTO Drive Shaft - Series 4
• Hub - Lubricating

Features & Benefits:

• Fully-welded, 12-gauge steel deck with replaceable skid shoes for long product life.
• 40 hp gearbox with a 5-year limited warranty.
• Choose shear bolt or slip clutch.
• Cuts up to 1.5-inch diameter trees.
• Front and rear chain guards available on request.

Specification:

General Information:

• Manufacturer: Mahindra
• Model Year: 2023
• Model: 5 ft. Slip Clutch Standard-Duty Rotary Cutter
• Model Code: RCASD5SC
• Color: Red

Dimensions:

• Cutting Height Range: 2 - 6 inches
• Weight: 470 lbs
• Cutting Width: 5 ft

Measurements:

• Deck Thickness: 12 ga
• Cutting Capacity: Diameter - 1.5 inches

Operational:

• Hitch: Category - 1
• Quick-hitch compatible
• Wheels: (1) Solid laminated
• Cutter Type: Rotary with slip clutch
• Stump Jumper: Pan
• Tractor Size: Compatible with 1626, 1635, 1640, 2638, 2645, and 2660
• Gearbox HP Rating: 40 hp

Other:

• Warranty:
• 5-year limited for gearbox
• 1-year limited for other components
