Description:

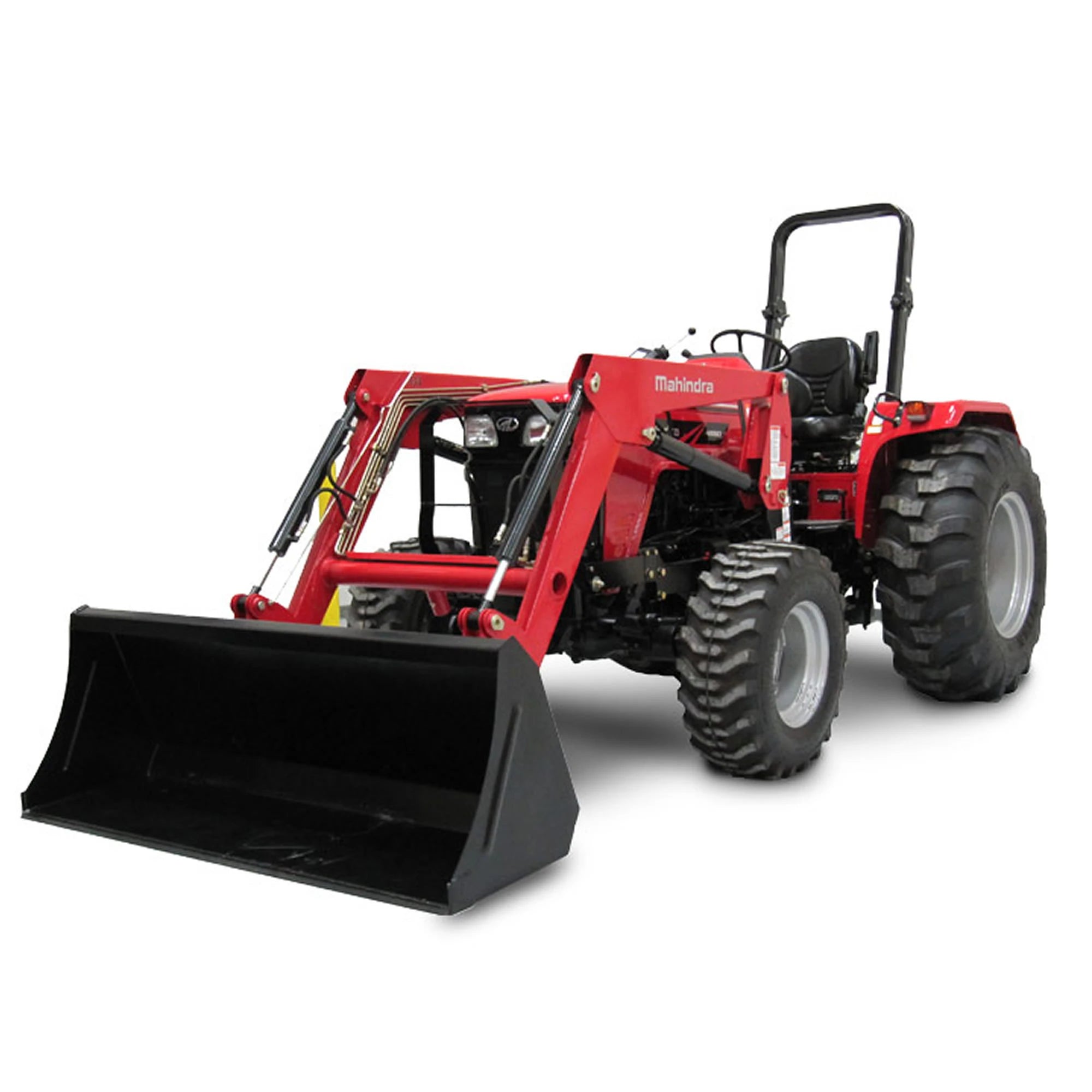

Mahindra 4500 series utility tractors are rugged and hardworking designed for light and medium-duty applications. Available in 2WD or 4WD, these practical, no-nonsense machines are designed to provide you with everything you need to get the job done. Available from 41 to 48 engine horsepower, and compatible with an extensive number of high-quality implements and attachments, you can easily configure this tractor to your liking so you can make the most of your workday.

Specification:

ENGINE:

• Type: Four Stroke, Direct Injection, Water-Cooled Diesel
• Engine HP [kW] @ RPM: 48 (35.8) @ 2300
• Displacement (in³): 166.7 (2732)
• Number of Cylinders: 4
• Compression Ratio: 18.7 : 1
• Low Idle RPM: 750 ± 50
• High Idle RPM: 2500 ± 50

POWER TAKE OFF:

• Type: Live
• Rear PTO RPM: 540 @ 2058
• PTO HP [kW]: 38 (28.3)

DASH INSTRUMENTS:

• Tachometer & Hour Meter
• Fuel Gauge
• Temperature Gauge
• Indicators for Warning Messages
• 4WD Drive Lamp

SAFETY EQUIPMENT:

• Foldable ROPS w/ Retractable Seat Belt
• Safety Start Switches
• Turn Signals/ Hazard Lights
• Mechanical Wet Disc Brakes
• Electric Key Shut Off
• Parking Brake Indicator on Dash
• Water Temperature Gauge
• Horn

DRIVE TRAIN:

• Number of Speeds: 8F / 2R
• Clutch: Dual
• Brakes: Fully Enclosed Dry Disc

HYDRAULICS:

• Type: Open Center, Full-Live Hydraulic w/ Position & Draft Controls
• 3-Point Hitch: CAT I & II w/ Telescopic Stabilizer
• Lift Capacity lb (kg): 3527 (1599)

OPERATOR STATION:

• Wide Platform Steps
• Color Coded Controls
• Tool Box
• mComfort Seat w/ Adjustable Mechanical Suspension

FRONT AXLE:

• Power Steering
• Square Tube Design
• Level Gears for Wider Steering

ELECTRICAL:

• Battery: 12 V, 96 Ah
• Alternator: 12 V, 45 A
• Starter Capacity: 12 V, 2.0 kW

DIMENSIONS:

• Overall Length in (mm): 127 (3225)
• Overall Width in (mm): 82.6 (2098)
• Overall Height in (mm): 93.7 (2379)
• Wheelbase in (mm): 76.7 (1948)
• Turning Radius ft (m): 10.5 (3.2)
• Weight lb (kg): 5192 (2360)

WHEELS & TIRES:

• AG [Front/Rear]: 9.5 x 16 / 12.4 x 28
• IND [Front/Rear]: 12.6 x 16.5 / 16.9 x 24

CAPACITIES:

• Fuel Tank gal. (L): 14.5 (54.8)
• Cooling System gal. (L): 2.2 (8.3)
• Engine Oil gal. (L): 2 (7.5)
• TRANS & DIFF gal. (L): 10.5 (39.7)
