Description:

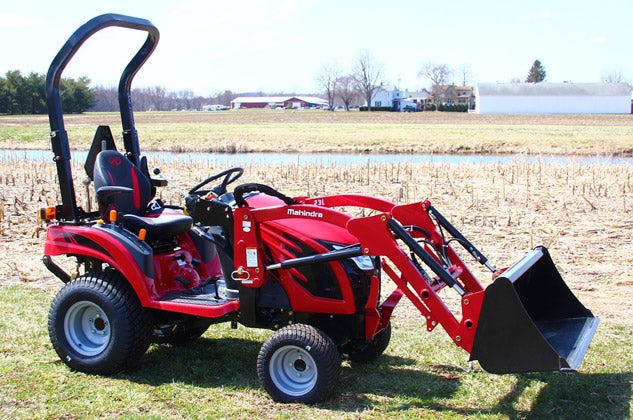

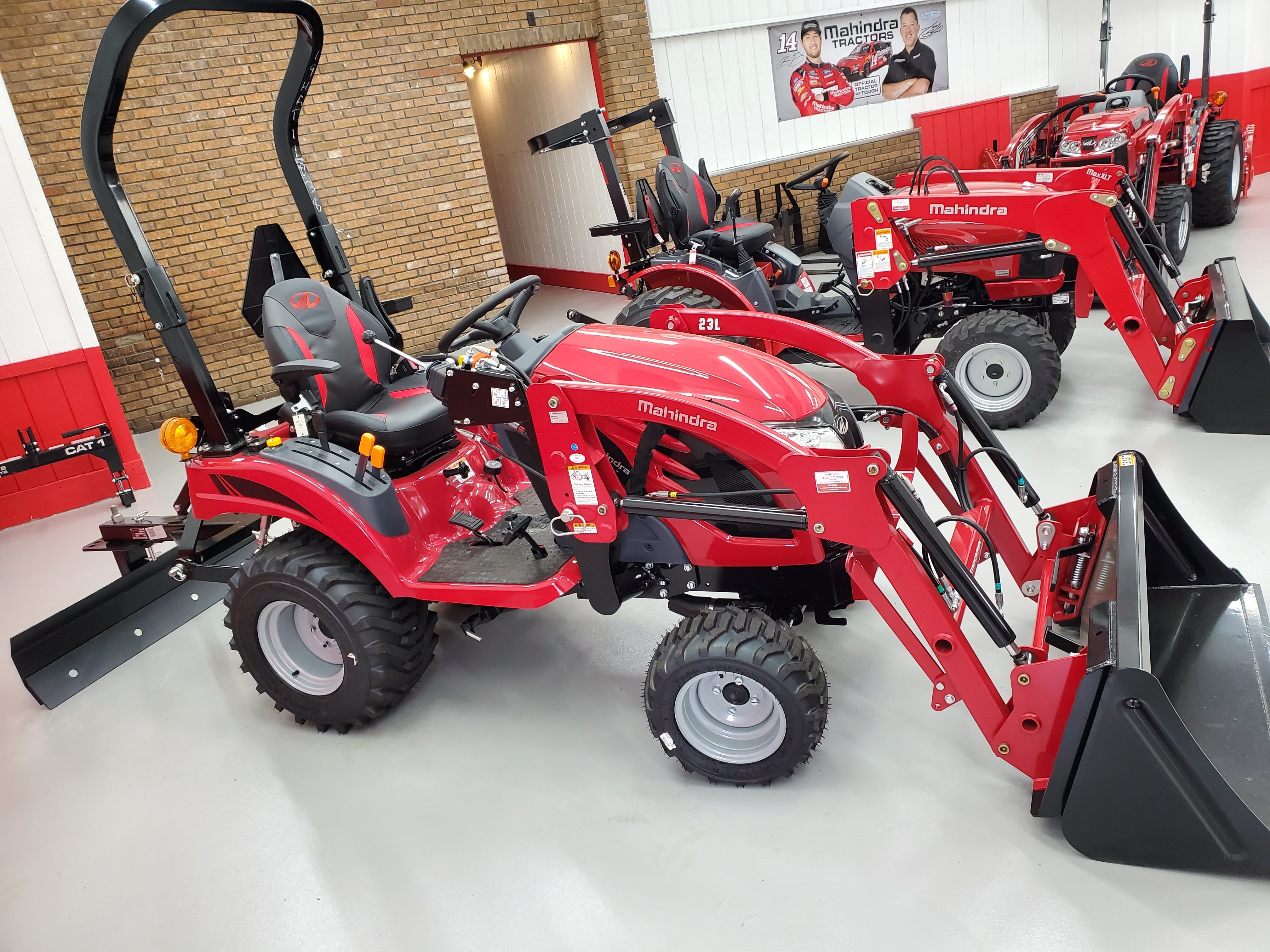

Mahindra eMax sub-compact tractors are surprisingly versatile, offering powerful performance on our smallest platform.

Specifications:

Engine

• Engine type: Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine (US TIER-4 Final)
• Engine HP (kW) @ RPM: 19.4 HP (14.5 kW) @ 3000 RPM
• Displacement: 60.6 in³ (993 cc)
• Number of cylinders: 3
• Fuel tank capacity: 6.6 gal (25 L)
• Bore & stroke: 2.91 x 3.03 in

Drive Train

• Transmission type: Hydrostatic Transmission (HST) – 2 ranges
• Number of speeds: Infinite (hydrostatic)
• Clutch: Dry-Single
• Maximum speed: 7.8 mph
• Brakes: Wet Disc

PTO (Power Take-Off)

• PTO type: Independent
• Rear PTO RPM: 540 @ 2942 RPM
• Mid PTO RPM: 2500 @ 2958 RPM
• PTO HP: 14.2 HP (10.6 kW)

Hydraulics

• Type: Open Center
• Maximum total flow: 6.2 GPM (23.4 L/min)
• Main pump output: 4.1 GPM
• Steering pump output: 2.1 GPM
• 3-Point hitch: Category I Narrow with Check Chains
• 3-Point hitch lift capacity @ 24" behind link ends: 680 lbs (309 kg)

Electrical

• Battery: 12 V, 450 CCA
• Alternator: 12 V, 45 A

Dimensions & Weight

• Overall length: 94.2 in (2392 mm)
• Wheelbase: 53.1 in (1348 mm)
• Turning radius: 7.2 ft (2.1 m)
• Overall width: 44.5 in (1130 mm)
• Overall height: 86.6 in (2299 mm)
• Minimum ground clearance: 8.3 in (210 mm)
• Weight: 1499 lbs (680 kg)

Tires

• AG Tires (Front/Rear): 18 x 8.5-10 / 26 x 12-12
• IND Tires (Front/Rear): 18 x 8.5-10 / 26 x 12-12
• TURF Tires (Front/Rear): 18 x 8.5-10 / 26 x 12-12

Loader (Optional)

• Loader model: 23L
• Max lift height: 71.3 in
• Loader lift capacity: 617 lbs (280 kg)
• Digging depth: 3.9 in
