Description:

Efficient, no-nonsense workhorse with a robust 4WD powertrain, ready for any task. Budget-friendly and easily customized with high-quality implements and attachments.

Specifications:

Engine

• Engine Type: Four-stroke, direct-injection, water-cooled diesel
• Horsepower: 48 HP (35.8 kW) @ 2300 RPM (T4)
• Displacement: 166.7 in³ (2732 cc)
• Number of Cylinders: 4
• Fuel Tank Capacity: 14.55 gal (55 L)
• Bore & Stroke: 3.5 x 4.3 in

Drive Train

• Transmission Type: Full constant mesh
• Number of Speeds: 8 Forward / 2 Reverse
• Clutch: Dual
• Max Speed: 17.6 mph
• Brakes: Fully enclosed dry disc

PTO

• PTO Type: Live
• Rear PTO RPM: 540 @ 2058 RPM
• PTO HP: 38 HP (28.3 kW)

Hydraulics

• Type: Open Center
• Maximum Total Flow: 8.7 GPM (32.9 L/min)
• 3-Point Hitch: Category 1 & 2 adjustable, with telescopic stabilizers
• 3-Point Hitch Lift Capacity @ 24" Aft: 3527 lb (1600 kg)

Electrical

• Battery: 12 volt, 96 amp hours
• Alternator: 12 volt, 45 A

Dimensions & Weight

• Overall Length: 127 in (3227 mm)
• Wheelbase: 76.7 in (1948 mm)
• Turning Radius: 10.5 ft (3.2 m)
• Overall Width: 82.6 in (2098 mm)
• Overall Height: 93.7 in (2380 mm)
• Ground Clearance: 8.7 in (218 mm)
• Weight: 5192 lb (2355 kg)

Tires

• AG Tires Front/Rear: 9.5 x 16 / 12.4 x 28
• Industrial Tires Front/Rear: 12 x 16.5 / 16.9 x 24

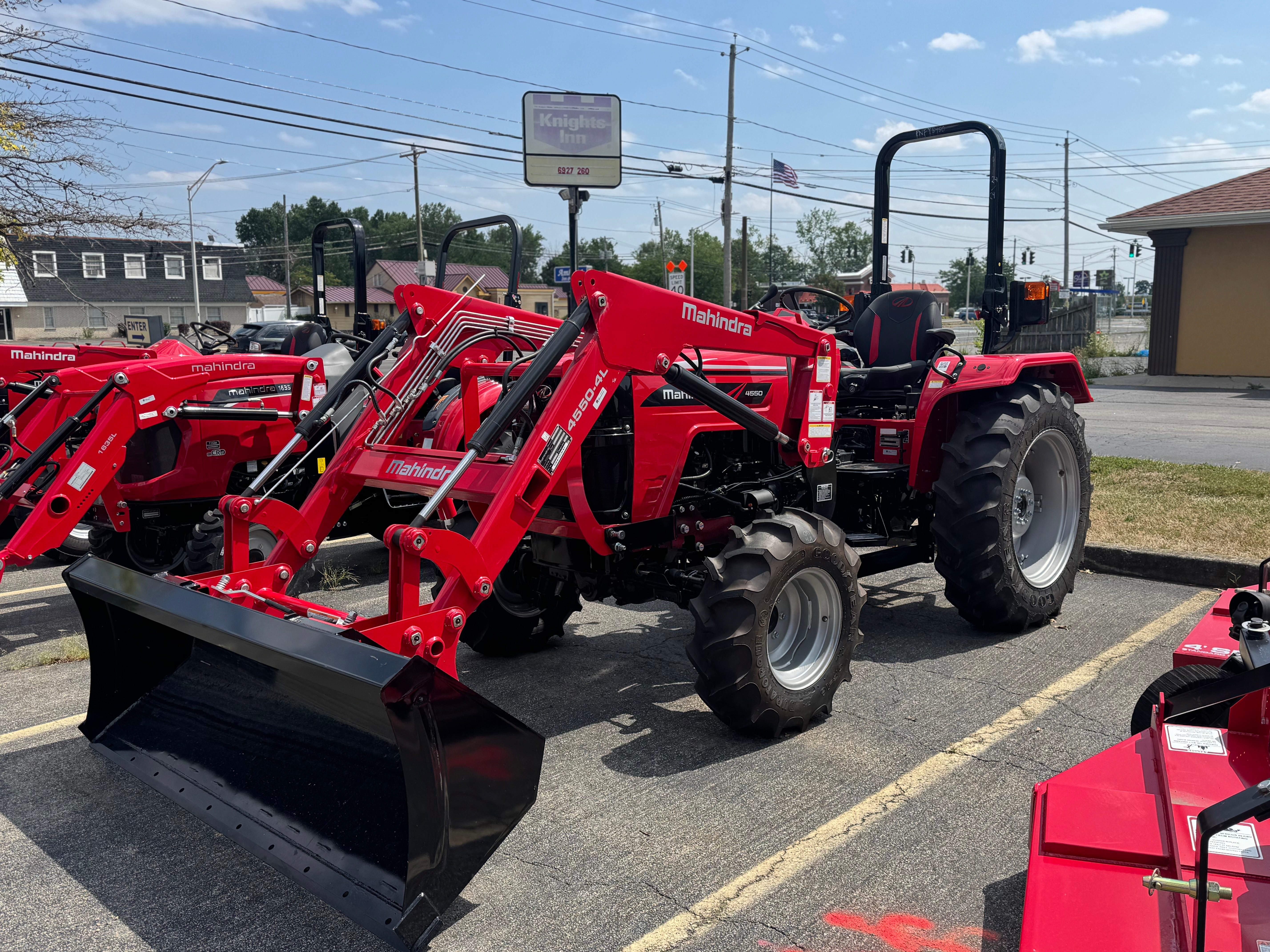

Loader (4550-4L Loader)

• Max Lift Height: 116.6 in
• Loader Lift Capacity: 2866 lb (1303 kg)
• Digging Depth: 3.8 in
