Description:

Efficient, no-nonsense workhorse with a robust 4WD powertrain, ready for any task. Budget-friendly and easily customized with high-quality implements and attachments.

Specifications:

Engine

• Engine type: Four-stroke, direct-injection water-cooled diesel
• Engine HP (kW) @ RPM: 41 HP (30.5 kW) @ 2300 RPM (Tier 4)
• Displacement: 166.7 in³ (2732 cc)
• Number of cylinders: 4
• Fuel tank capacity: 14.55 gal (55 L)
• Bore & stroke: 3.5 in x 4.3 in

Drive Train

• Transmission type: Full constant mesh
• Number of speeds: 8 Forward / 2 Reverse
• Clutch: Dual
• Maximum speed: 17.6 mph
• Brakes: Fully enclosed dry disc

PTO (Power Take-Off)

• PTO type: Live
• Rear PTO RPM: 540 @ 2058 RPM
• PTO HP (kW): 31 HP (23.1 kW)

Hydraulics

• Type: Open Center
• Maximum total flow: 8.7 GPM (32.9 L/min)
• 3-Point hitch: Category 1 and 2 adjustable, with telescopic stabilizers
• 3-Point hitch lift capacity @24" aft: 3527 lb (1600 kg)

Electrical

• Battery: 12 volt, 96 amp hours
• Alternator: 12 volt, 45 A

Dimensions & Weight

• Overall length: 128.9 in (3275 mm)
• Wheelbase: 76.7 in (1948 mm)
• Turning radius: 10.5 ft (3.2 m)
• Overall width: 82.6 in (2098 mm)
• Overall height: 92.6 in (2352 mm)
• Minimum ground clearance: 8.7 in (218 mm)
• Weight: 5192 lb (2355 kg)

Tires

• AG (Front/Rear): 9.5 x 16 / 12.4 x 28
• IND (Front/Rear): 12 x 16.5 / 16.9 x 24

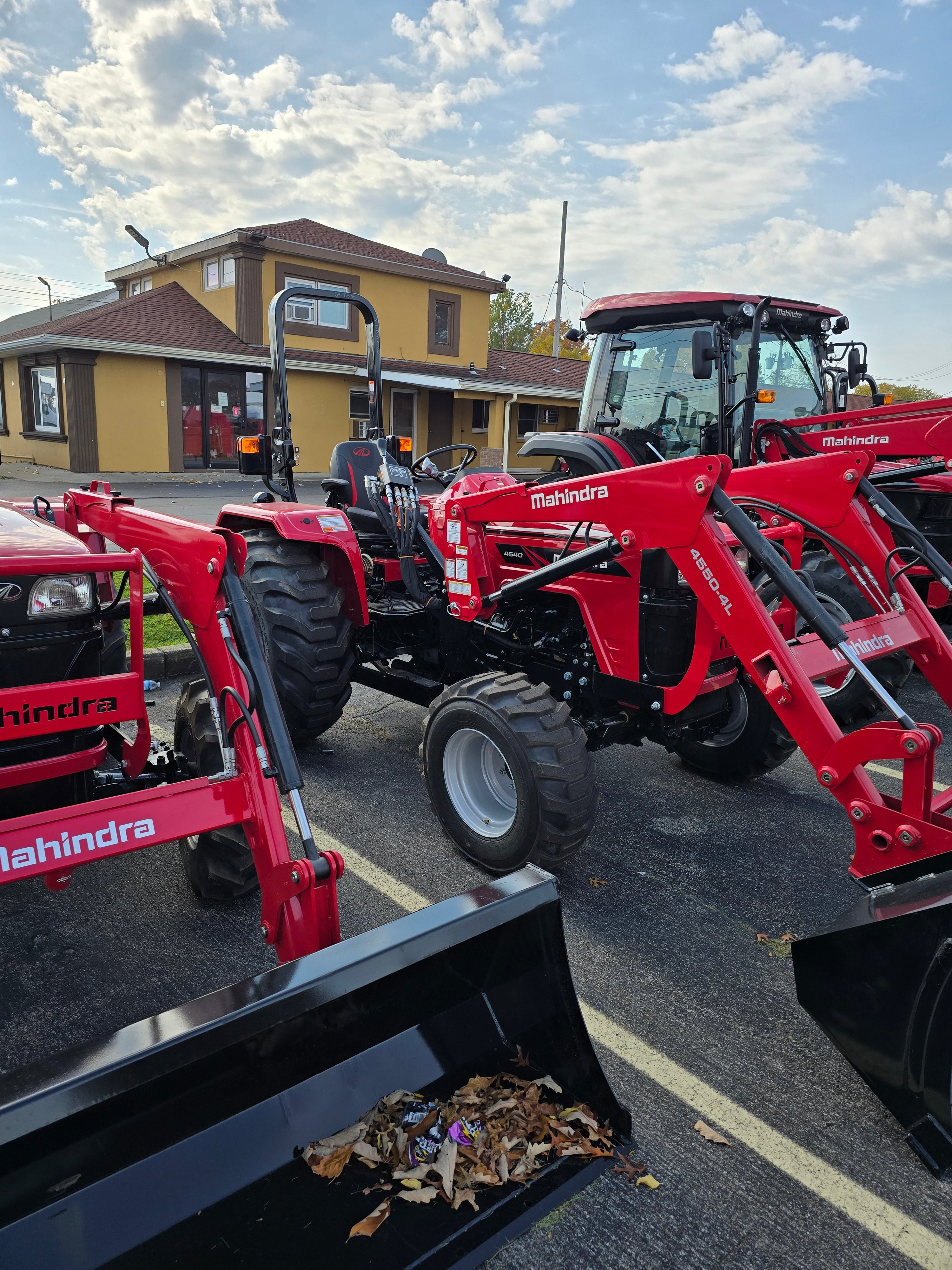

Loader

• Model number: 4550-4L
• Max lift height: 116.6 in
• Loader lift capacity: 2866 lb (1303 kg)
• Digging depth: 3.8 in
