Description:

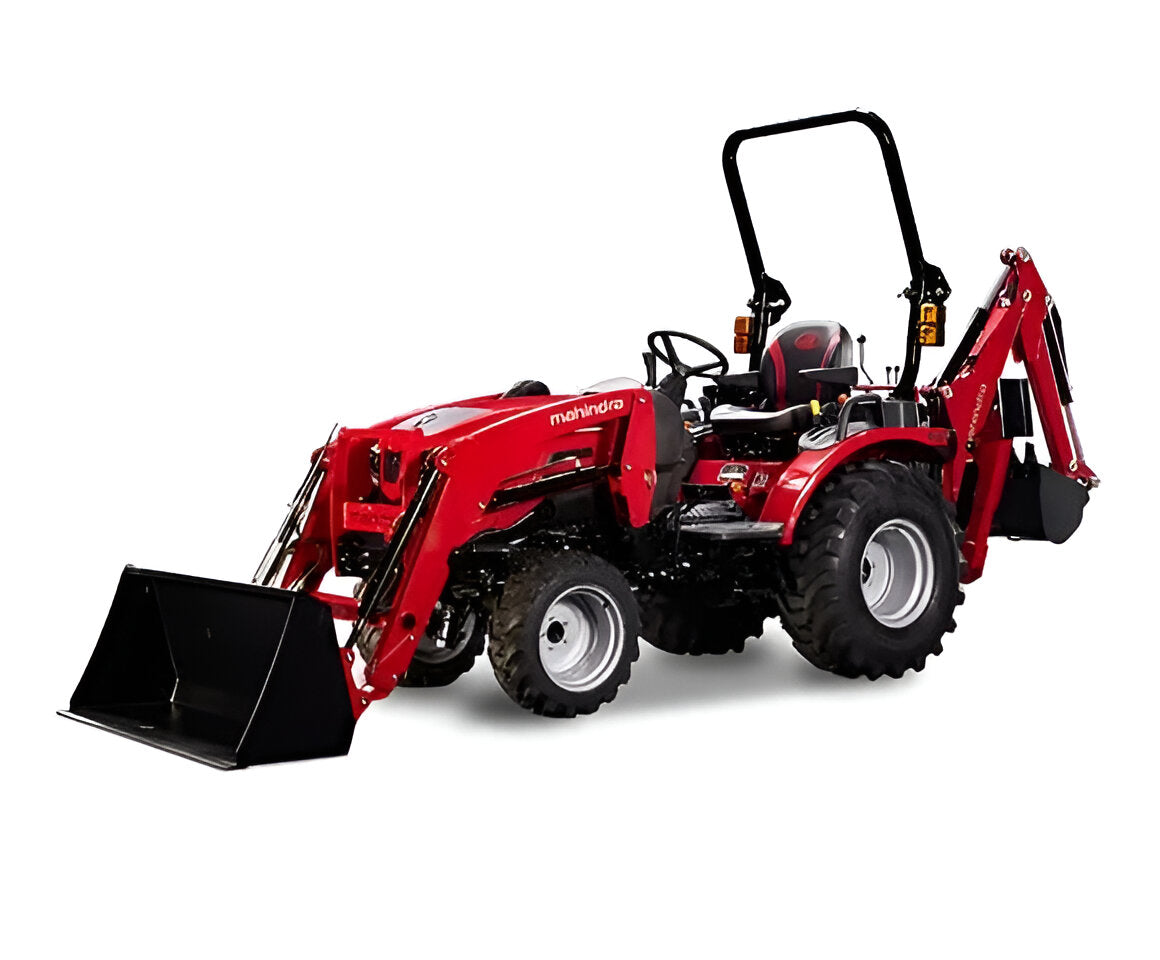

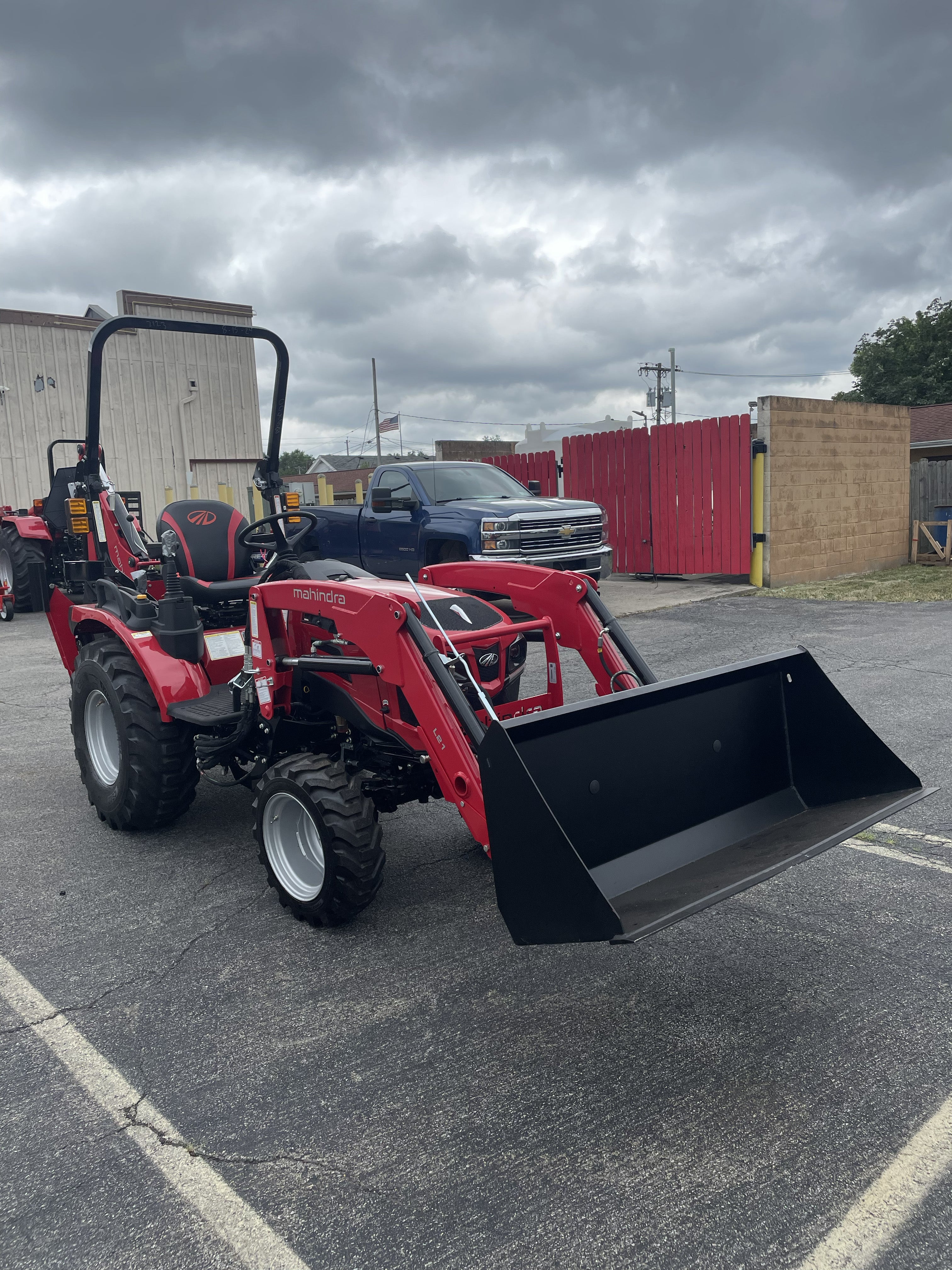

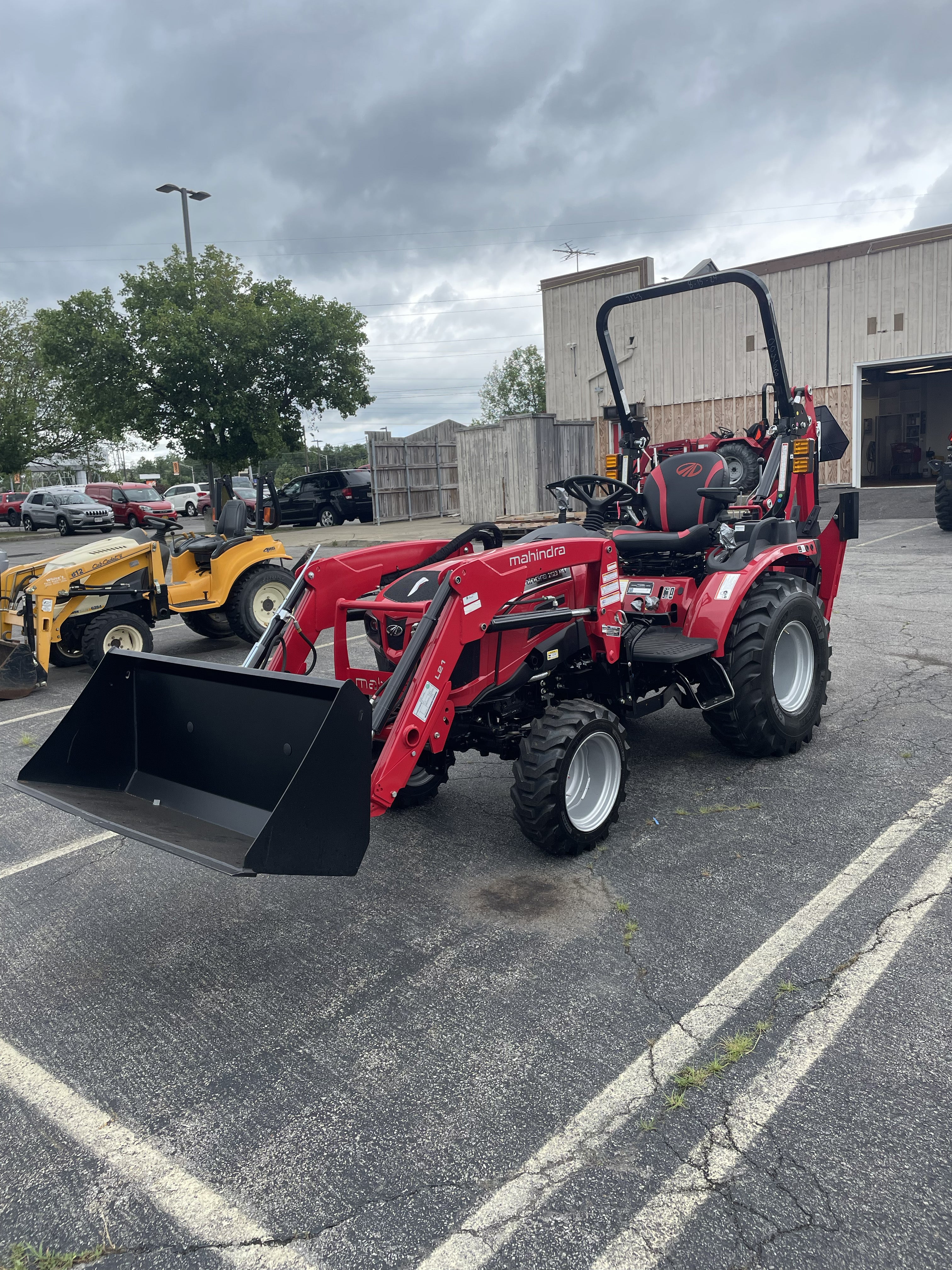

You have our word the Mahindra 2100 series will perform to your expectations and might even surprise you from time to time. It’s the compact class’s toughest, friendliest, and smartest tractor. First time operators smile at the intuitive and informative cockpit. Phone app lovers are pumped by its intelligent OJA software.

Specifications:

Engine

• Engine type: Naturally Aspirated, Indirect Injection, Water Cooled Diesel
• Engine HP (kW) @ RPM: 22.9 HP (17.1 kW) @ 2500 RPM
• Displacement: 80.4 in³ (1318 cc)
• Number of cylinders: 3
• Fuel tank capacity: 5.8 gal (22 L)
• Bore & stroke: Bore: 3.1 in, Stroke: 3.6 in

Drive Train

• Transmission type: Hydrostatic Transmission (HST) – 3 range
• Number of speeds: Infinite (hydrostatic)
• Clutch: Not applicable
• Maximum speed: 11.2 mph
• Brakes: Dual pedal

PTO (Power Take-Off)

• PTO type: Independent
• Rear PTO RPM: 540
• Mid PTO RPM: 2500 @ 2500 RPM
• PTO HP: 16.8 HP (12.5 kW)

Hydraulics

• Type: Open Center with Position Control
• Maximum total flow: 11.2 GPM (42.4 L/min)
• Main pump output: 6.3 GPM
• Steering pump output: 5 GPM
• 3-Point hitch: Category I
• 3-Point hitch lift capacity @ 24" aft: 1760 lbs (798 kg)

Electrical

• Battery: 630 CCA, 52 AH
• Alternator: 55 A

Dimensions & Weight

• Overall length: 112.7 in (2863 mm)
• Wheelbase: 61.4 in (1560 mm)
• Turning radius: 7.6 ft (2.3 m)
• Overall width: 54.4 in (1383 mm)
• Overall height: 95.5 in (2426 mm)
• Minimum ground clearance: 13.4 in (340 mm)
• Weight: 2101 lbs (953 kg)

Tires

• Industrial (IND): 8.5×14 (Front) / 12.4-16 (Rear)
• Turf: 8.5×14 (Front) / 13.5-16 (Rear)

Loader (Optional)

• Loader model: L21
• Max lift height: 82.44 in
• Loader lift capacity: 1477 lbs (670 kg)
• Digging depth: 3.14 in
