Description:

Specification:

Engine:

• Engine Type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Engine HP: 38.7 HP (28.9 kW) @ 2400 RPM
• Displacement: 166.7 cu. in. (2732 cc)
• Number of Cylinders: 4
• Fuel Tank: 7.7 gal. (29 L)

Drive Train:

• Transmission: HST (Hydrostatic Transmission) with 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO:

• PTO Type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Opt.) @ 2526 RPM
• PTO HP: 27.7 HP (20.6 kW)

Hydraulics:

• Type: Open Center
• Implement Pump Output: 7.7 gpm (29 L/min)
• Maximum Total Flow: 11.4 gpm (41.8 L/min)
• 3-Point Hitch: CAT I with Telescoping Stabilizers & Flex Links
• Lift Capacity: 2646 lb (1200 kg)

Electrical:

• Battery: 12 V, 925 CCA
• Alternator: 12 V, 90 A

Dimensions:

• Overall Length: 127.8 in (3246 mm)
• Overall Width: 62 in (1574 mm)
• Overall Height: 91.5 in (2324 mm)
• Wheelbase: 76.9 in (1953 mm)
• Minimum Ground Clearance: 12.8 in (325 mm)
• Turning Radius: 9.2 ft (2.8 m)
• Weight: 3627 lb (1645 kg)

Wheels & Tires:

• AG Front: 7 x 16
• AG Rear: 11.2 x 24
• IND Front: 28 x 8.5-15
• IND Rear: 43 x 16-20
• TURF Front: 27 x 10.5-15
• TURF Rear: 41 x 14-20

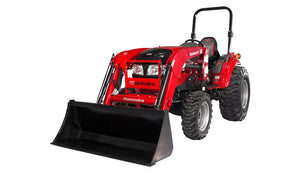

The Mahindra 1640 Tractor offers robust performance, with its powerful engine, versatile transmission, and advanced hydraulic system, making it suitable for various agricultural tasks.
