Description:

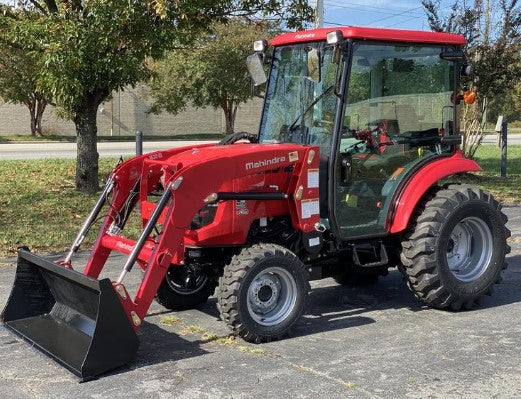

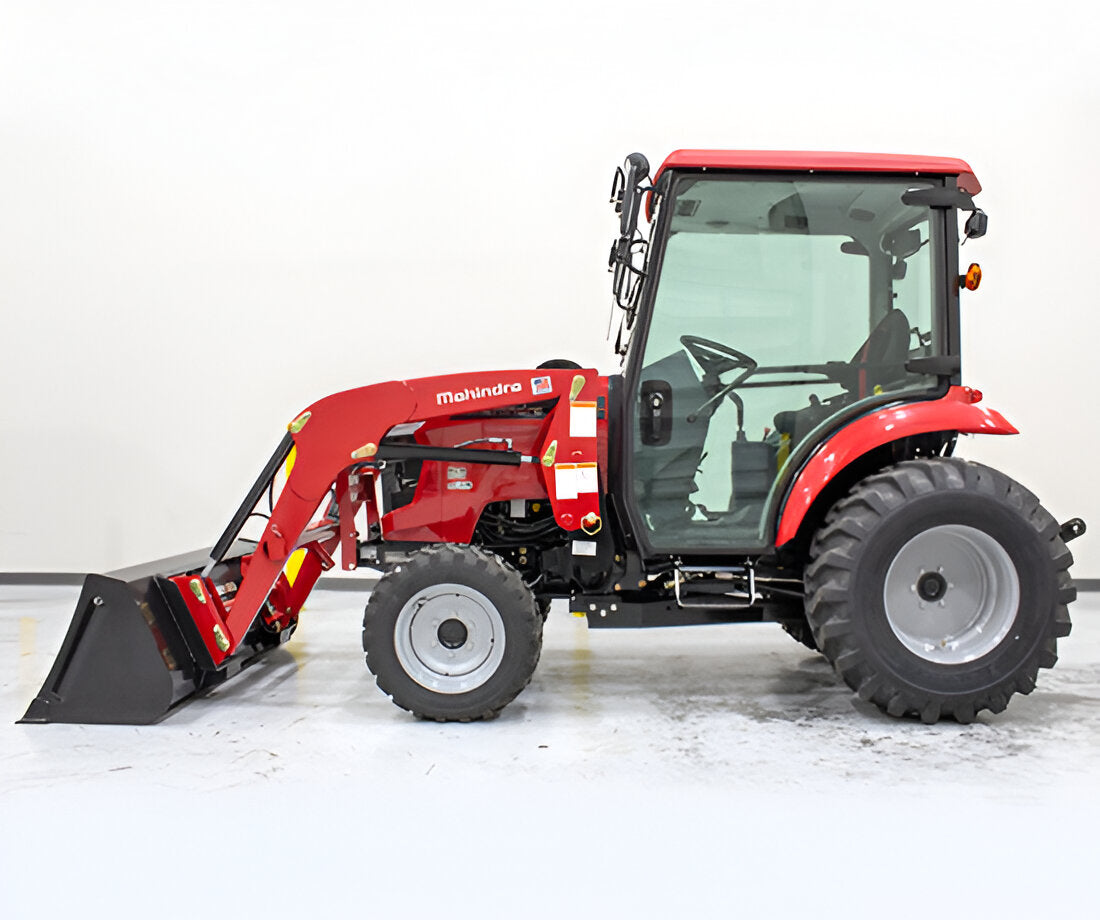

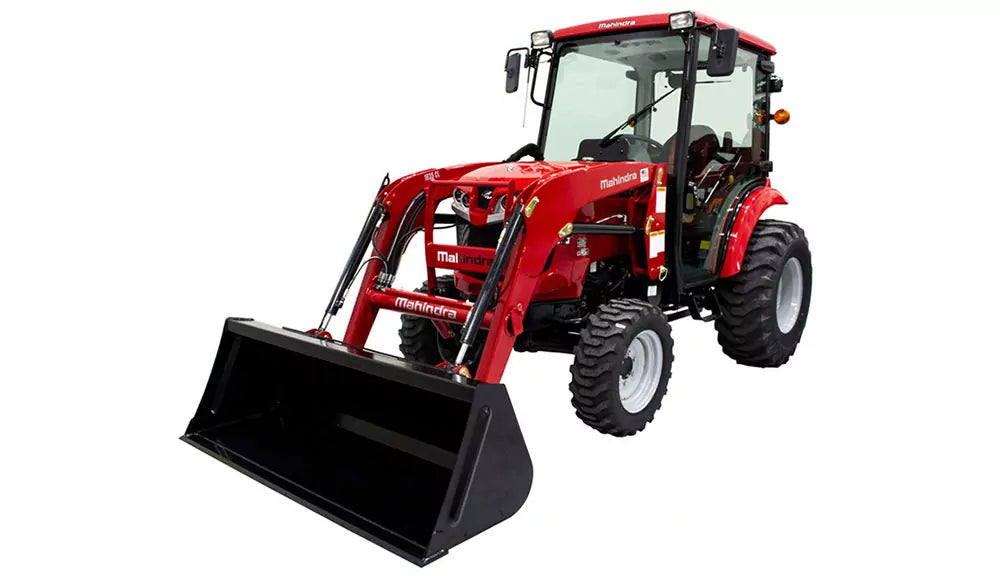

Mahindra 1600 compact utility tractors are built to handle grueling jobs around the ranch, hunting property, park, or large estate. They offer a small footprint but powerful diesel engines, competitive lift capacities, and exclusive features like a cab and mid-mower to maximize versatility and comfort.

Specifications:

• Engine
• Engine type: Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine
• Engine HP: 36.2 hp (27 kW) @ 2500 RPM
• Displacement: 125 in³ (2048 cc)
• Number of cylinders: 3
• Fuel tank capacity: 7.7 gal (29 L)
• Bore & stroke: 3.5 in x 4.3 in
• Drive Train
• Transmission type: HST – 3 Ranges (Hydrostatic)
• Number of speeds: Infinite
• Clutch: Dry-Single
• Max speed: 13.3 mph
• Brakes: Wet Disc
• PTO
• PTO type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM (optional): 2000 @ 2526 RPM
• PTO HP: 26 hp (19.4 kW)
• Hydraulics
• Type: Open Center
• Maximum total flow: 10.8 GPM (40.7 L/min)
• Main pump output: 7.5 GPM
• Steering pump output: 3.3 GPM
• 3-Point hitch: CAT I with Telescoping Stabilizers & Flex Links
• 3-Point hitch lift capacity @ 24" aft: 2646 lb (1200 kg)
• Electrical
• Battery: 12 V, 925 CCA
• Alternator: 12 V, 90 A
• Dimensions & Weight
• Overall length: 123.8 in (3144 mm)
• Wheelbase: 73 in (1854 mm)
• Turning radius: 8.5 ft (2.6 m)
• Overall width: 63 in (1600 mm)
• Overall height: 88 in (2235 mm)
• Minimum ground clearance: 12.2 in (310 mm)
• Weight: 3527 lb (1600 kg)
• Tires
• AG (Front/Rear): 7 x 16 / 11.2 x 24
• IND (Front/Rear): 28 x 8.5-15 / 43 x 16-20
• TURF (Front/Rear): 25 x 8.5-14 / 13.6 x 16
• Loader (1626L)
• Model number: 1626L
• Max lift height: 86 in
• Loader lift capacity: 1650 lb (748 kg)
• Digging depth: 4.5 in
