Description:

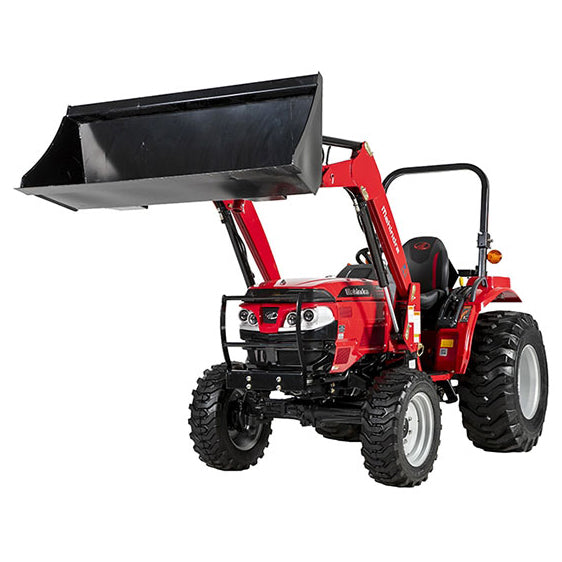

The 1600 series tractors offer a blend of compact size and robust performance, ideal for light- to medium-duty applications. These premium compact utility vehicles come equipped with deluxe features to enhance comfort while maintaining efficiency.

Key Features:

• Reinforced steel fenders & hood ensure durability and longevity.
• Easy access to battery, air filter, and fuel tank for convenient maintenance.
• Powerful steering with a tight turning radius for maneuverability in various environments.
• Optional canopies available on open station models for added protection from the elements.
• Comfort seat with foldable armrests to enhance operator comfort during extended use.

Ideal Uses:

Specialty, Rural, Home, Grounds Maintenance, Municipal

Includes:

• Four Wheel Drive
• Foldable ROPS (Roll-Over Protection Structure)
• Hydrostatic Transmission
• Industrial Tires
• Loader with 16" Bucket
• Backhoe

Specifications:

Engine / Motor:

• Type: Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
• Engine @ RPM: 25.9 HP (19.1 kW) @ 2500
• Displacement: 80.4"3 (1318 cc)
• Fuel Tank: 7.1 gal.

Drive Train:

• Transmission: HST - 3 Ranges
• Number of Speeds: Infinite
• Clutch: Dry-Single
• Brakes: Wet Disc

PTO:

• Type: Live
• Rear PTO RPM: 540 @ 2376
• Mid PTO RPM: 2000 (Opt.) @ 2526
• PTO: 19 HP (14.2 kW)

Hydraulics:

• Type: Open Center
• Implement Pump: Output 7.5 gpm
• Maximum Total Flow: 10.8 gpm
• 3-Point Hitch: CAT I with Telescoping Stabilizers
• Lift Capacity: 2646 lb.

Electrical:

• Battery: 12V, 540 CCA
• Alternator: 12V, 50A

Dimensions:

• Overall Length: 121.3"
• Overall Width: 63"
• Overall Height: 81.5"
• Wheelbase: 67.3"
• Minimum Ground Clearance: 11.4"
• Radius: 7.9'
• Weight: 2459 lb.

Wheels & Tires:

• Industrial [Front/Rear]: 27" x 8.5-15" / 15" x 19.5"

Loader:

• Standard Bucket Size: 62"
• Maximum Lift Height: 86"
• Dig Depth: 4.5"
• Lift Capacity to Full Height at Pivot Pin: 1560 lb.
• Breakout Force: 2795 lb.
• Shipping Weight: 774 lb.
