Description:

Mahindra 1600 compact utility tractors are built to handle grueling jobs around the ranch, hunting property, park, or large estate. They offer a small footprint but powerful diesel engines, competitive lift capacities, and exclusive features like a cab and mid-mower to maximize versatility and comfort.

Specifications:

Engine

• Engine type: Four-stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine
• Engine HP [kW] @ RPM: 25.9 HP (19.1 kW) @ 2500 RPM
• Displacement: 80.4 in³ (1318 cc)
• Number of cylinders: 3
• Fuel tank capacity: 7.1 gal (27 L)
• Bore & stroke: 3.1 in x 3.6 in

Drive Train

• Transmission type: HST - 3 Ranges (Hydrostatic Transmission)
• Number of speeds: Infinite
• Clutch: Dry-Single
• Max speed: 13.3 mph
• Brakes: Wet Disc

PTO

• PTO type: Live
• Rear PTO RPM: 540 @ 2376 RPM
• Mid PTO RPM: 2000 (Optional) @ 2526 RPM
• PTO HP (kW): 19 HP (14.2 kW)

Hydraulics

• Type: Open Center
• Maximum total flow: 10.8 GPM (40.7 L/min)
• Total pump output (main): 7.5 GPM
• Total pump output (steering): 3.3 GPM
• 3-Point hitch: CAT I with Telescoping Stabilizers
• 3-Point hitch lift capacity @ 24" aft: 2646 lb (1200 kg)

Electrical

• Battery: 12 V, 540 CCA
• Alternator: 12 V, 50 A

Dimensions & Weight

• Overall length: 121.3 in (3081 mm)
• Wheelbase: 67.3 in (1709 mm)
• Turning radius: 7.9 ft (2.4 m)
• Overall width: 63 in (1600 mm)
• Overall height: 81.5 in (2070 mm)
• Minimum ground clearance: 11.4 in (289 mm)
• Weight: 2459 lb (1115 kg)

Tires

• AG (Front/Rear): 7 x 16 / 11.2 x 24
• IND (Front/Rear): 27 x 8.5-15 / 15 x 19.5
• TURF (Front/Rear): 25 x 8.5-14 / 13.6 x 16

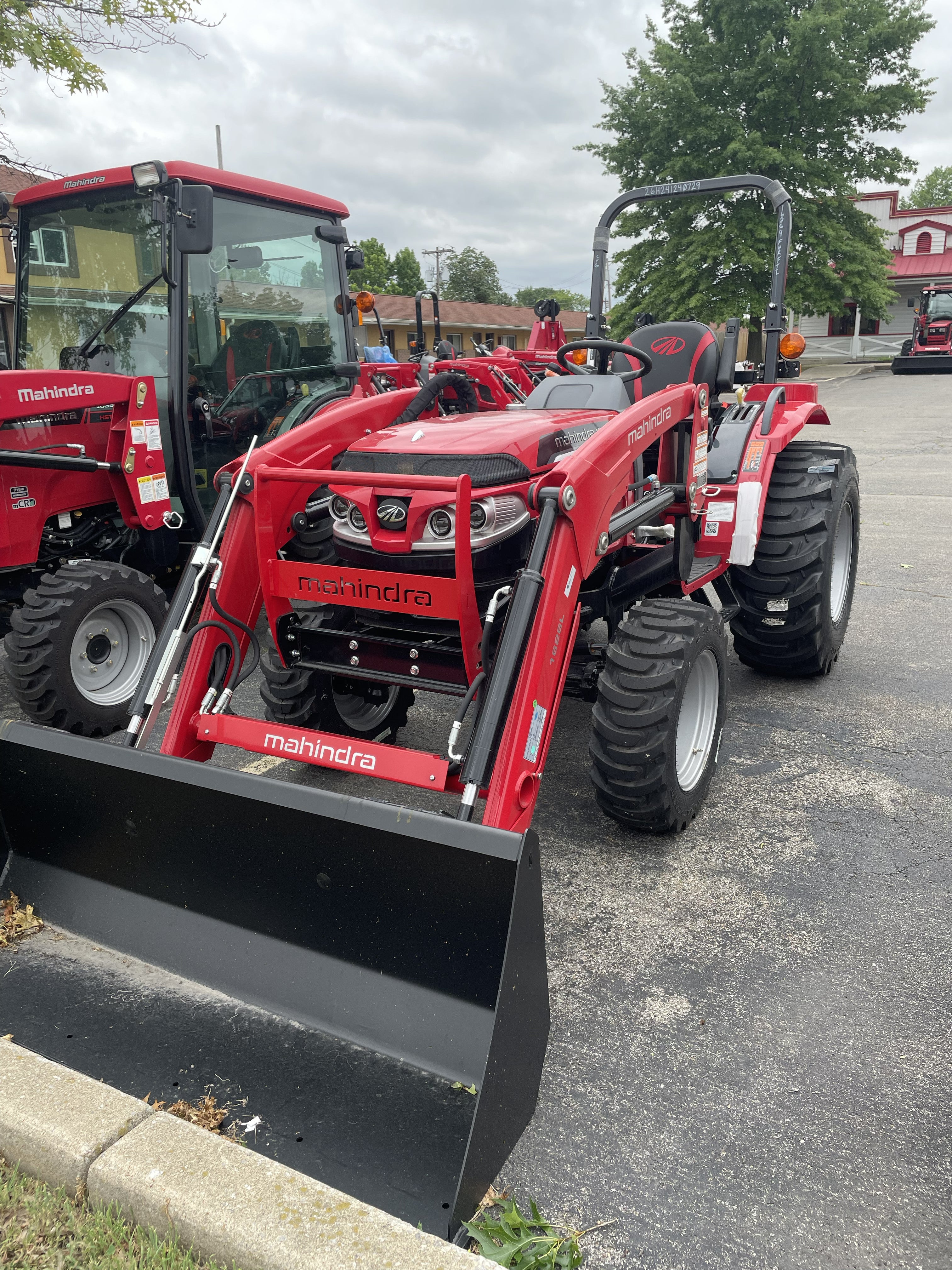

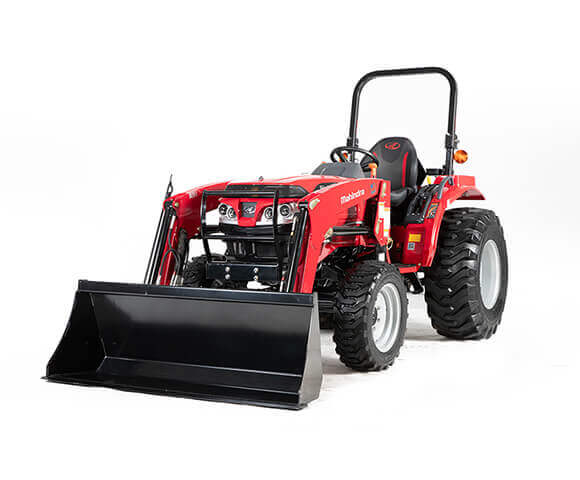

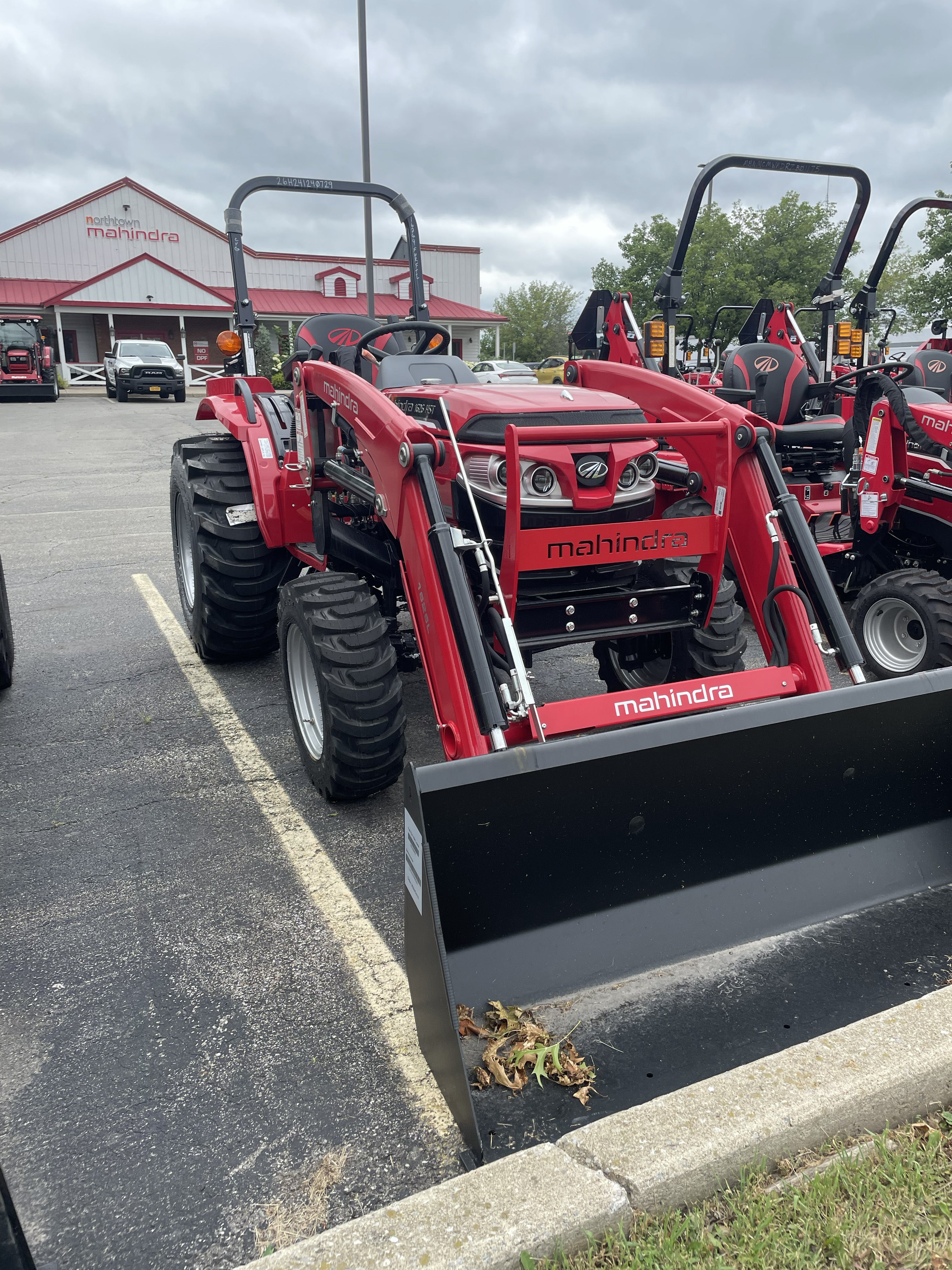

Loader (1626L)

• Model number: 1626L
• Max lift height: 86 in
• Loader lift capacity: 1560 lb (709 kg)
• Digging depth: 4.5 in
