Description:

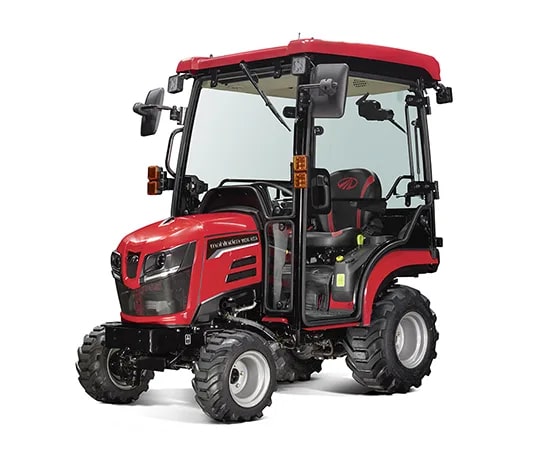

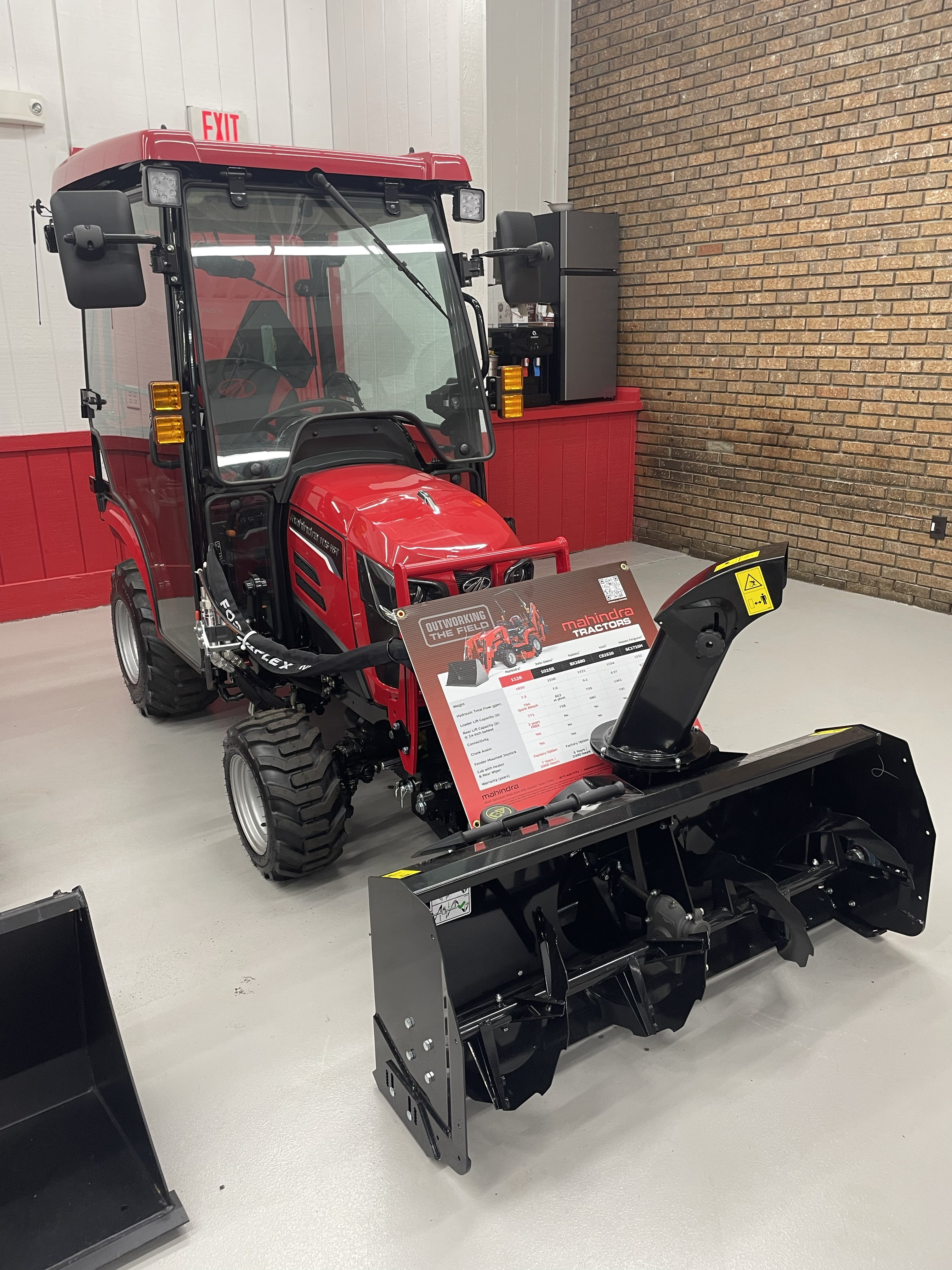

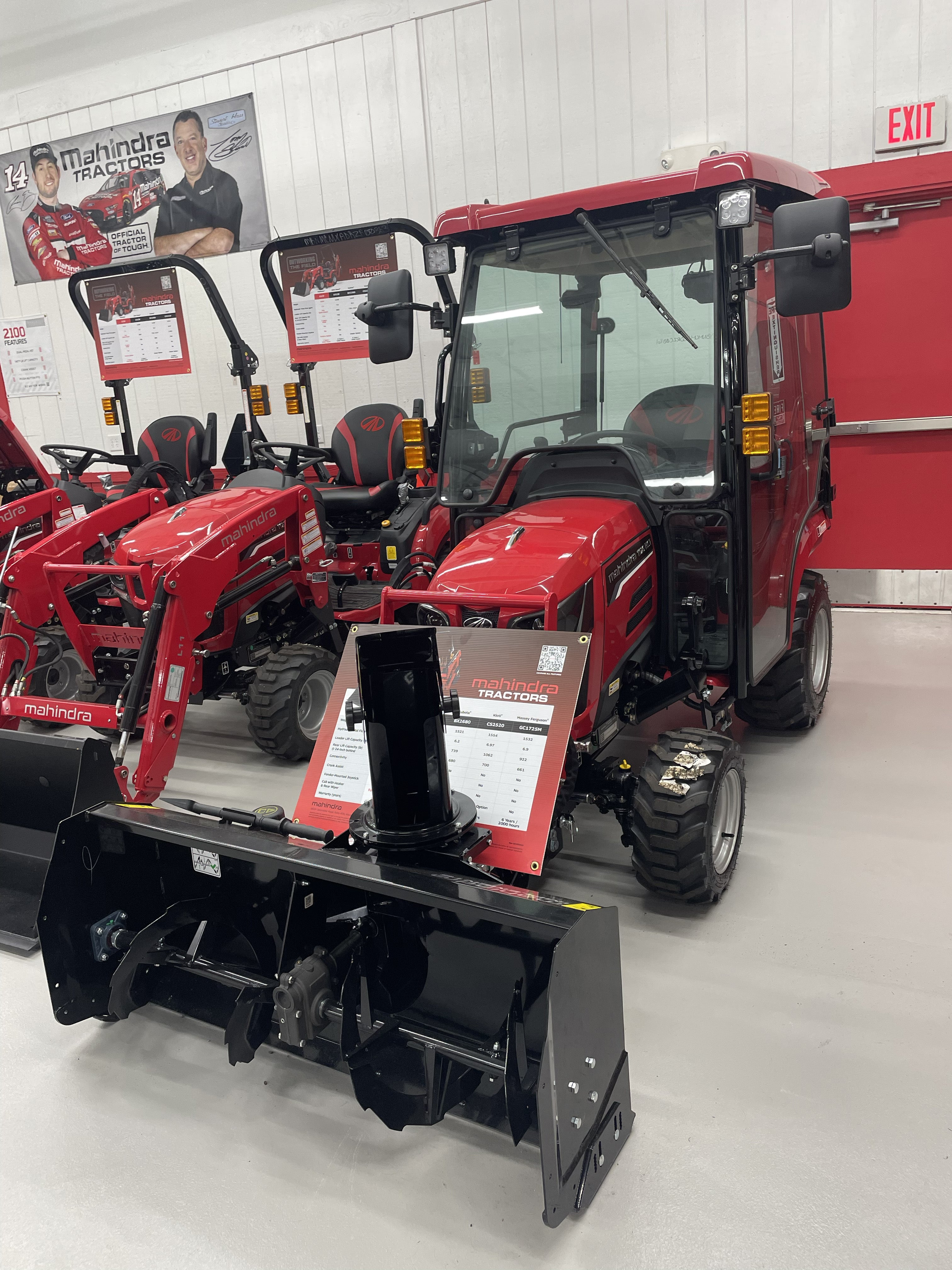

The 1100 series is the toughest, friendliest, and smartest tractors in the world. We challenge all weekend warriors to test their mettle. Novices will smile at an intuitive and informative cockpit. Phone app lovers will be pumped by its intelligent OJA software.

Specifications:

Engine

• Engine type: Naturally Aspirated, Indirect Injection, Water Cooled Diesel
• Engine HP (kW) @ RPM: 25.3 HP (18.8 kW) @ 3000 RPM
• Displacement: 67.2 in³ (1102 cc)
• Number of cylinders: 3
• Fuel tank capacity: 6.6 gal (25 L)
• Bore & stroke: 3 in x 3.2 in

Drive Train

• Transmission type: HST – 2 range
• Number of speeds: Infinite
• Clutch: N/A (hydrostatic)
• Maximum speed: 7.3 mph
• Brakes: Single pedal

PTO (Power Take-Off)

• PTO type: Independent Wet Clutch
• Rear PTO RPM: 540 @ 2837 RPM
• Mid PTO RPM: 2500 @ 2837 RPM
• PTO HP (kW): 19.2 HP (14.3 kW)

Hydraulics

• Type: Open center with Position Control
• Maximum total flow: 7.6 GPM (28.7 L/min)
• Total pump output (main): 7.4 GPM
• Total pump output (steering): 3.8 GPM
• 3-Point hitch: Category I
• 3-Point hitch lift capacity @24" aft: 771 lb (350 kg)

Electrical

• Battery: 12.6 V, 650 CCA
• Alternator: 12V, 55A

Dimensions & Weight

• Overall length: 100.4 in (2550 mm)
• Wheelbase: 55.1 in (1400 mm)
• Turning radius: 7.2 ft (2.2 m)
• Overall width: 46.3 in (1177 mm)
• Overall height (OS version): 86.6 in (2200 mm)
• Overall height (Cab version): 80.5 in (2044 mm)
• Minimum ground clearance: 6.7 in (169 mm)
• Weight (OS version): 1620 lb (735 kg)
• Weight (Cab version): 1962 lb (890 kg)

Tires

• Industrial (IND) Front/Rear: 18×8.5-10 / 26×12-12
• Turf Front/Rear: 16×7.5-10 / 24×12-12

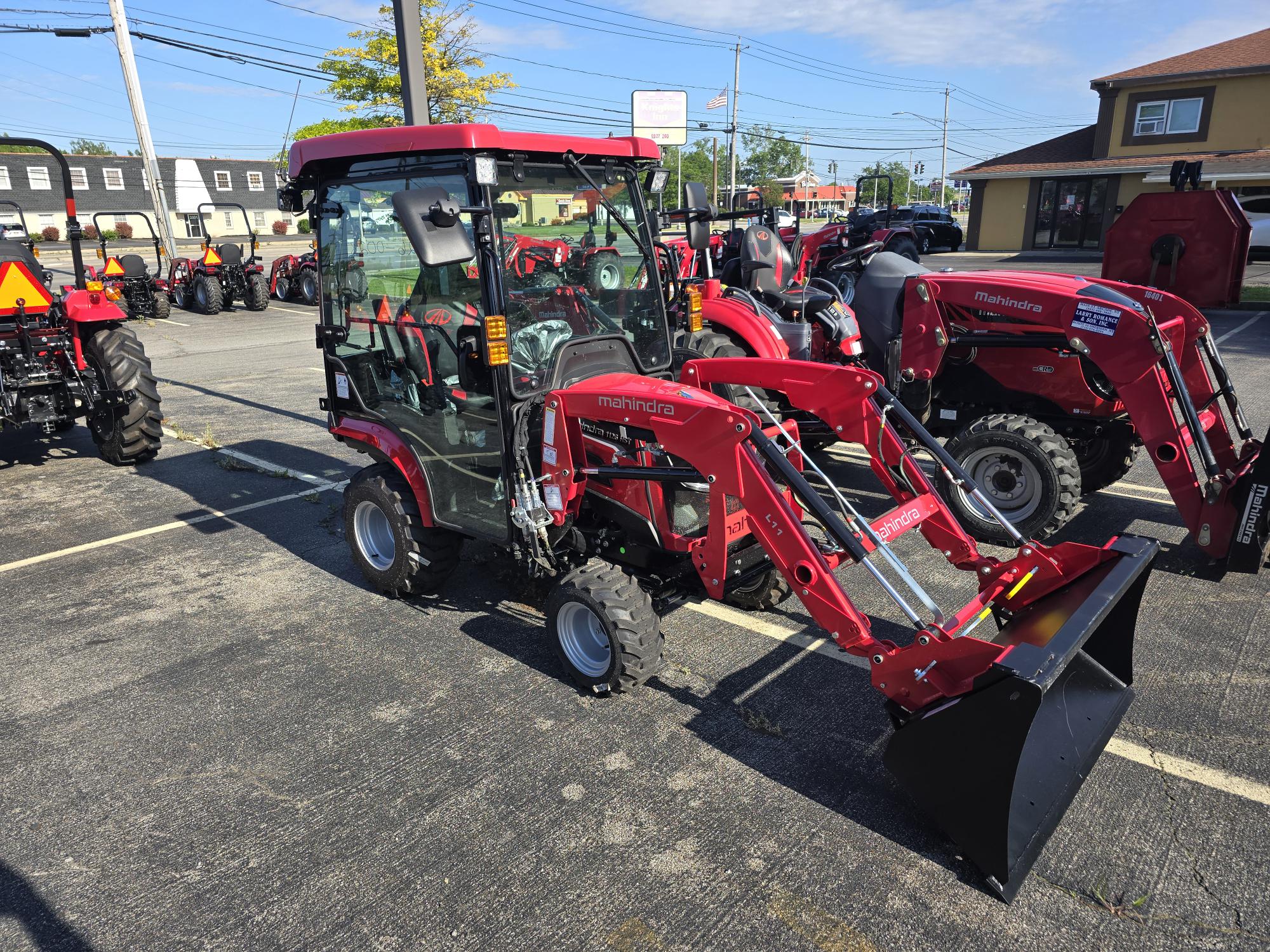

Loader

• Model number: L11
• Max lift height: 73.2 in
• Loader lift capacity: 794 lb (360 kg)
• Digging depth: 3.14 in
